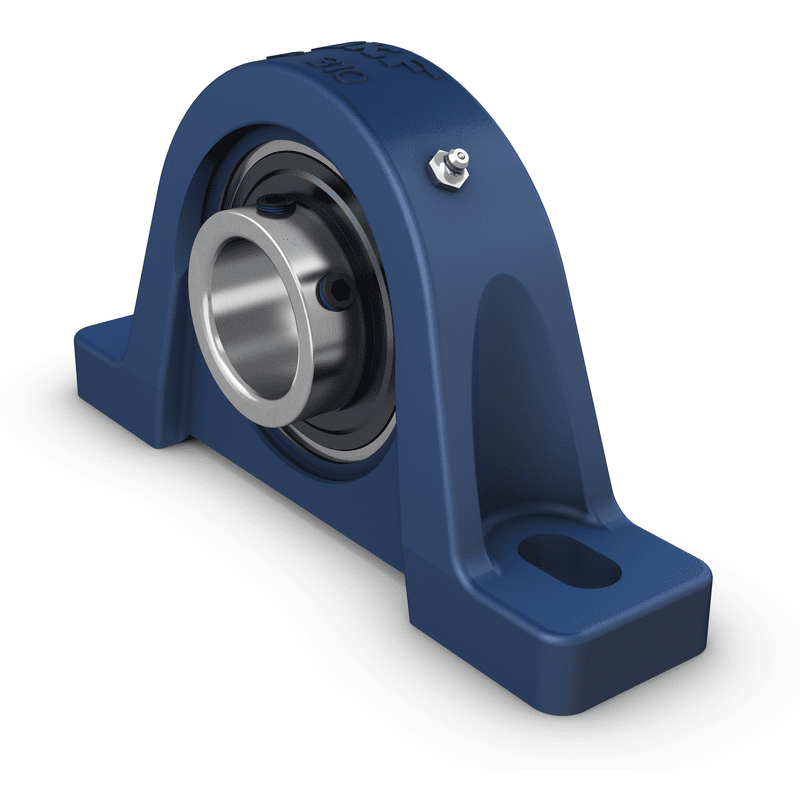

Manufacturer : SKF
Description
Technical specification
| Compliance with standard |
JIS
|
|---|---|
| Purpose specific |
For material handling applications
|
| Housing material |
Cast iron
|
| Sealing solution |
Standard seals with additional flingers
|
DIMENSIONS
| d |
65 mm
|
|
|---|---|---|
| d1 |
≈ 82.5 mm
|
|
| A |
72 mm
|
|
| B |
68.3 mm
|
|
| B4 |
10 mm
|
|
| H |
76.2 mm
|
|
| H2 |
153.5 mm
|
|
| J |
203 mm
|
|
| L |
265 mm
|
|
| N |
25 mm
|
|
| N1 |
30 mm
|
|
| s1 |
42.9 mm
|
| DN |
6.589 mm
|
|
|---|---|---|
| SWN |
11.11 mm
|
|
| GN |
1/8-27 NPT
|
CALCULATION DATA
| Basic dynamic load rating | C |
57.2 kN
|
|---|---|---|
| Basic static load rating | C0 |
40 kN
|
| Fatigue load limit | Pu |
1.7 kN
|
| Limiting speed |
2 350 r/min
|
|
|
with shaft tolerance h6
|
MOUNTING INFORMATION
| Set screw | G2 |
M10x1
|
|---|---|---|
| Hexagonal key size for set screw | N |
5 mm
|
| Recommended tightening torque for set screw |
16.5 N·m
|
