Oil Seal 100X120X12 CRW1 V
SKU:OIL000438
100X120X12 CRW1 V

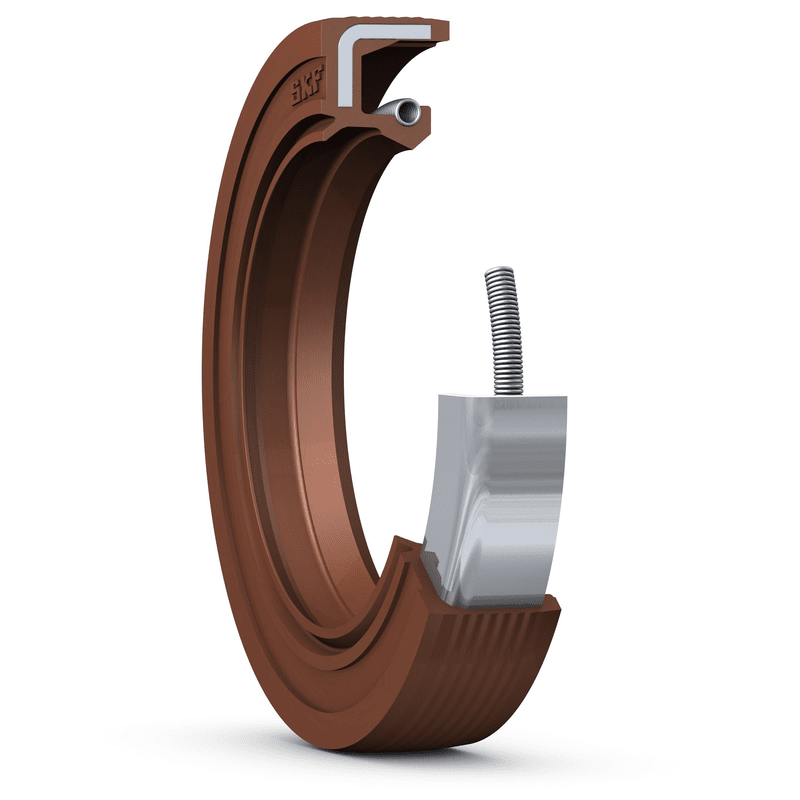

Radial shaft seals for general industrial applications
Radial shaft seals sit between rotating and stationary components, or two components in relative motion. They have two main parts. One is a cylindrical outer covering with an interference fit that seals statically against the housing bore. The second, a sealing lip, seals dynamically and statically against the shaft. Its sealing edge presses against the counterface surface of the shaft with a defined radial load.
Manufacturer : SKF
Description
Technical specification
| Type of outside diameter |

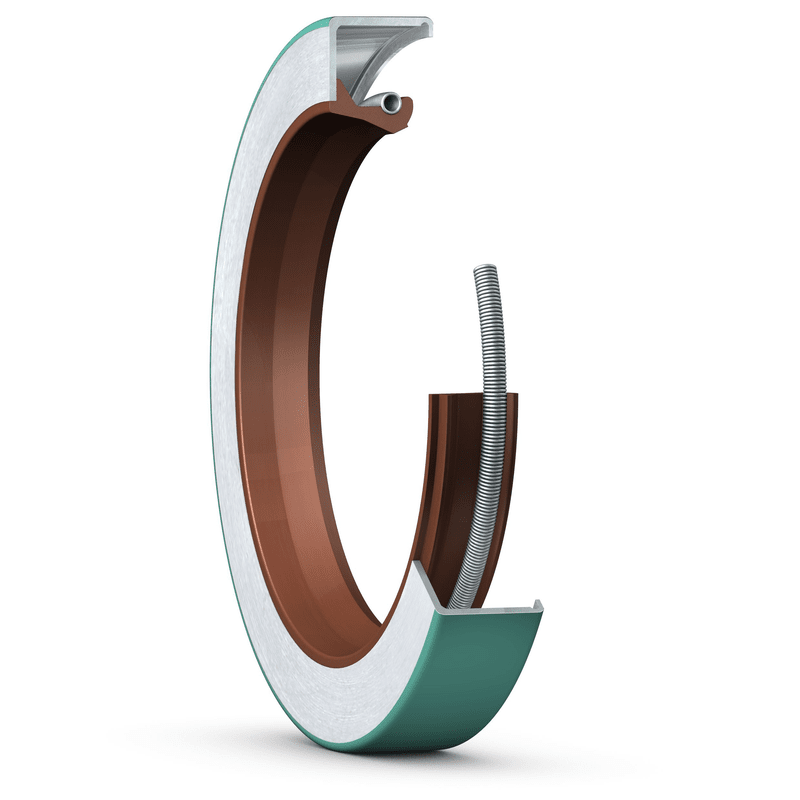

Metal-cased with sealant coating on the outside diameter
|
|---|---|
| Lip material |
Fluoro rubber (FKM)
|
| Seal design |
CRW1
|
| Compliance with standard |
DIN 3760
|
DIMENSIONS
| d1 |
100 mm
|
|
|---|---|---|
| D |
120 mm
|
|
| b |
12 mm
|
APPLICATION AND OPERATING CONDITIONS
| Operating temperature |
min. -40 °C
|
|
|---|---|---|
| Operating temperature |
max. 200 °C
|
|
| Shaft speed |
max. 6 300 r/min
|
|
| Shaft surface speed |
max. 33 m/s
|
