Air-driven pump & Oil injector THAP300E/SET- SKF
SKU:AIR000002
Air-driven pump & Oil injector THAP300E/SET- SKF

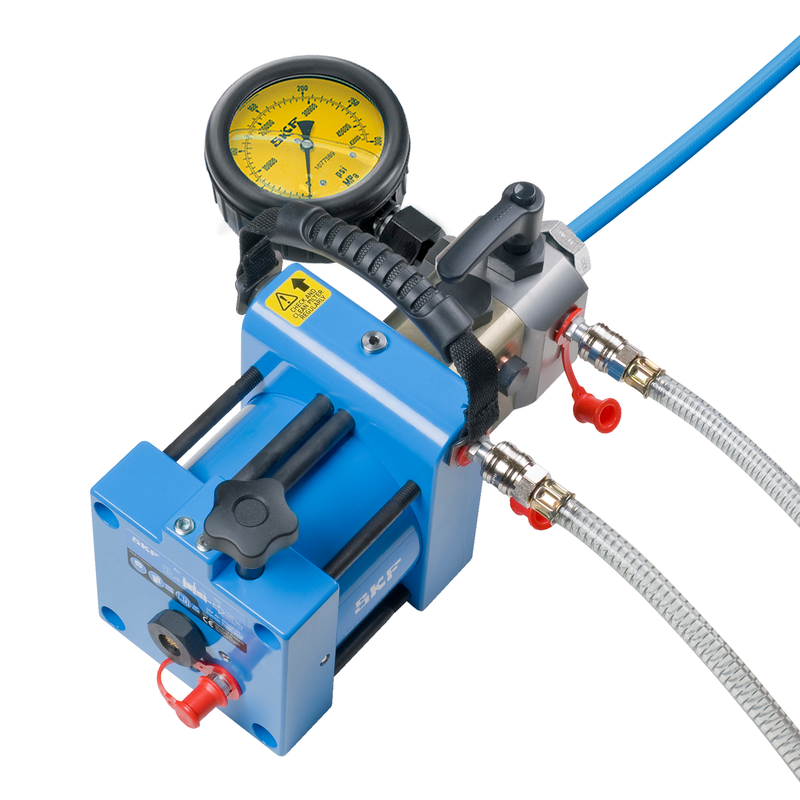

The THAP E air-driven pumps and oil injectors are available in four different pressure versions. They are used for mounting and dismounting OK couplings, for dismounting large pressure joints such as bearings, flywheels, couplings, railway wheels and in many similar applications. The pumps consist of a high pressure hydraulic pump, driven by an air piston. The units are supplied in a sturdy case including oil suction and return hoses with quick connect couplings.
The air driven pumps can also be supplied in complete sets which consists of pump, pressure gauge, high pressure hose, quick connection coupling and nipple and thread adapter nipples to suit the application.
Manufacturer : SKF
Description
Air-driven pumps and injector 30 to 400 MPa (4 350 to 58 000 psi)
Features & benefits
- Time savings compared to hand operated pumps
- Portable
- Continuous supply of oil
- Internal air pressure limiter helps ensure safe operation
- Low air consumption
- Wide operating temperature range
- Sturdy storage boxes
- Low, medium and high pressure units
- Easy to connect to the application
Applications
- Mounting bearings
- SKF OK-Couplings
- Mounting ship propellers, rudder pintles, railway wheels and other similar applications
| Designation | THAP 300E |
| Nominal hydraulic pressure | 300 MPa (43 500 psi) |
| Operating air pressure | 7 bar* (102 psi) |
| Air consumption | 200 litre per minute / 7.1 cubic feet per minute |
| Operating temperature range | 0 °C - 45 °C (32 °F - 113 °F) with fluid maximum viscosity of 1500 mm2/s |
| Volume/stroke | 0,83 cm3 (0.05 in.3) |
| Oil outlet | G3/4 |
| Length | 405 mm (16 in.) |
| Height | 202 mm (8 in.) |
| Width | 171 mm (6.7 in.) |
| Weight | 13 kg (28.6 lb) |
| * Air pressures above 7 bar are automatically limited to 7 bar by an internal air limiter. | |
| Nr. | Designation | Description |
| 1 | THAP 300E | Air driven pump 300 MPa (43 500 psi) |
| 2 | 1077589/3 | Pressure gauge 0-400 MPa (58 000 psi) |
| 2 | TMJG S100 | Pressure gauge protection sleeve 100 mm |
| 3 | THAP E-PC2 | Protection device |
| 4 | THPN FM16G3/4 | Nipple G3/4 male, M16x1.5 cone female, 400 MPa (58 000 psi) |
| 5 | THAP 300-H/2 | High pressure hose, 300 MPa (43 500 psi), 2x M16x1.5 cone male, 2 m (6.5 ft.) |
| 6 | THPC 300-1 | Quick connection coupling, M16x1.5 cone female, 300 MPa (43 500 psi) |
| 7 | THPN 300-1 | Quick connection nipple, M16x1.5 cone female, 300 MPa (43 500 psi) |
| 8 | THPN M16G1/4 | Nipple M16x1.5 cone male, G1/4 male, 400 MPa (58 000 psi) |
| 9 | THPN M16G3/4 | Nipple M16x1.5 cone male, G3/4 male, 400 MPa (58 000 psi) |
| Carrying case (690 x 245 x 310 mm / 27.6 x 10.0 x 12.4 in). |
| Designation | Description |
| LHMF 300/5 | Mounting fluid (5 litre) |
| LHDF 900/5 | Dismounting fluid (5 litre) |
| THPN M16G1/8 | Nipple M16x1.5 cone male, G1/8 male, 300 MPa (43 500 psi) (for /K10) |
| THPN M16G3/8 | Nipple M16x1.5 cone male, G3/8 male, 400 MPa (58 000 psi) (for /K10) |
| THPN M16G1/2 | Nipple M16x1.5 cone male, G1/2 male, 400 MPa (58 000 psi) (for /K10) |
| THAP 300-H/3 | High pressure hose, 300 MPa (43 500 psi), 2x M16x1.5 cone male, 3 m (9.8 ft.) (for /K10) |
| THAP 300-H/4 | High pressure hose, 300 MPa (43 500 psi), 2x M16x1.5 cone male, 4 m (13.1 ft.) (for /K10) |
| Designation | Description |
| THAP E-2 | Set of hoses |
| THAP E-3 | Air valve assembly |
| THAP E-4 | Air inlet block |
| THAP E-5 | Air motor assembly |
| THAP E-6 | Oil inlet block |
| THAP 300E-7 | Oil injector assembly |
| THAP E-8 | Release valve assembly |
| THAP E-9 | Connection nipple assembly |
| THAP 300E-10 | Repair kit |
| THAP E-11 | Gauge plug assembly |
| THAP E-12 | Carrying handle |
| THAP E-PC2 | Protection device |
| 1077589/3 | Pressure gauge 0 - 400 MPa (58 000 psi) (for /K10) |
| TMJG S100 | Pressure gauge protection sleeve (for /K10) |
| LHMF 300/1 | Mounting fluid (1 litre) |
| THPN FM16G3/4 | Nipple G3/4 male, M16x1.5 cone female, 400 MPa (58 000 psi) (for /K10) |
| THAP 300-H/2 | High pressure hose, 300 MPa (43 500 psi), 2x M16x1.5 cone male, 2 m (6.5 ft.) (for /K10) |
| THPC 300-1 | Quick connection coupling, M16x1.5 cone female, 300 MPa (43 500 psi) (for /K10) |
| THPN 300-1 | Quick connection nipple, M16x1.5 cone female, 300 MPa (43 500 psi) (for /K10) |
| THPN M16G1/4 | Nipple M16x1.5 cone male, G1/4 male, 400 MPa (58 000 psi) (for /K10) |
| THPN M16G3/4 | Nipple M16x1.5 cone male, G3/4 male, 400 MPa (58 000 psi) (for /K10) |
