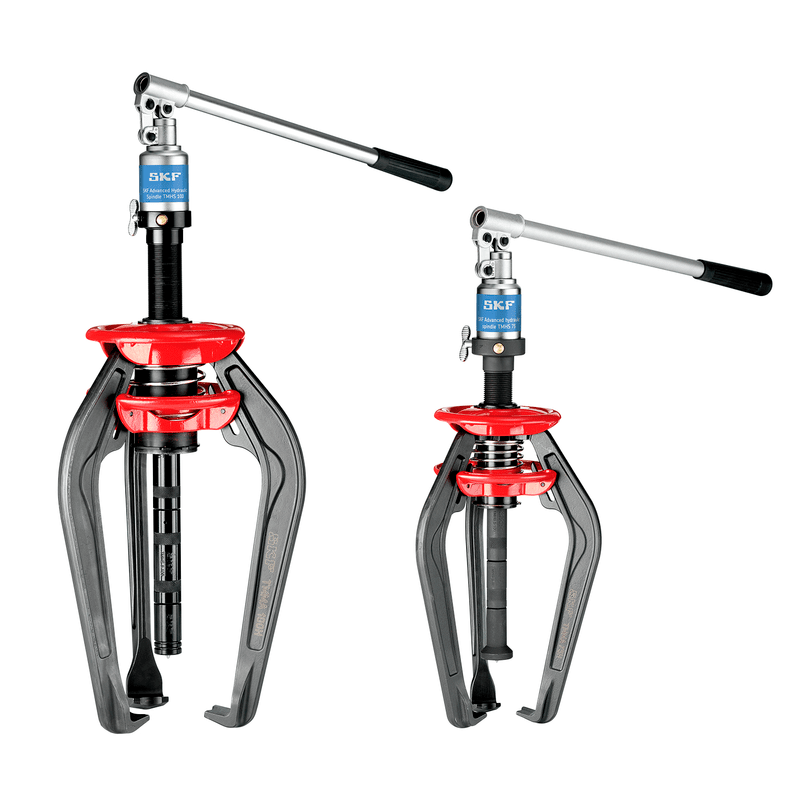

Hydraulic jaw pullers EasyPull TMMA75H-1
SKU:PUL000221
Equipped with spring-operated arms and a solid design, the SKF EasyPull is one of the most user-friendly and safe tools on the market. Ergonomically designed, the spring-operated arms enable the user to position the puller behind the component with just one movement.
Manufacturer : SKF
Description
Quick and effortless bearing dismounting
- Ready-to-use, integrated hydraulic cylinder, pump and puller - thus it is assembly-free and it is not necessary to purchase separate parts
- Safety valve prevents spindles and pullers from being overloaded if excessive force is applied
- The spring-loaded centre point on the hydraulic spindle allows easy centring of the puller on the shaft without damaging the shaft
- The TMMA 100H has a maximum withdrawal force of 100 kN (11.2 ton US) and a long stroke of 80 mm (3.1 in), which facilitates most dismounting jobs in just one operation
- For dismounting jobs requiring less force, SKF offers a 75 kN (8.4 ton US) version, the TMMA 75H with a maximum stroke of 75 mm (3 in)
- Supplied with extension pieces and one nosepiece
| General |
Width of grip external, minimum | 52 mm (2 in.) |
| Width of grip external, maximum | 200 (7.8 in.) | |
| Effective arm length | 200 mm (7.8 in.) | |
| Maximum withdrawal force | 75 kN (8.4 ton US) | |
| Total weight | 7.0 kg (15.4 lb) | |
| Claw dimensions | Claw height | 9,8 mm (0.39 in.) |
| Claw length | 18 mm (0.7 in.) | |
| Claw width | 28 mm (1.1 in.) | |
| Force generator | Hydraulic spindle | TMHS 75 |
| Piston stroke | 75 mm (3.0 in.) | |
| Body thread | UN 1,25"x12 | |
| Diameter nose piece | 35 mm (1.4 in.) |
| Puller | Designation | Description |
| TMMA 75H | TMMX 280 | Puller protection blanket |
| TMMS 50 / TMMS 100 | Tri section pulling plates |
| Puller | Designation | Description |
| TMMA 75H | TMMA 75H-1 | Arm |
| TMMA 75H/80-3 | Opening mechanism | |
| TMHS 5T | Hydraulics extension piece set | |
| TMHS 75 | Hydraulic spindle | |
