Bearing Induction Heater TIH030M/230V

SKU:BEA001569

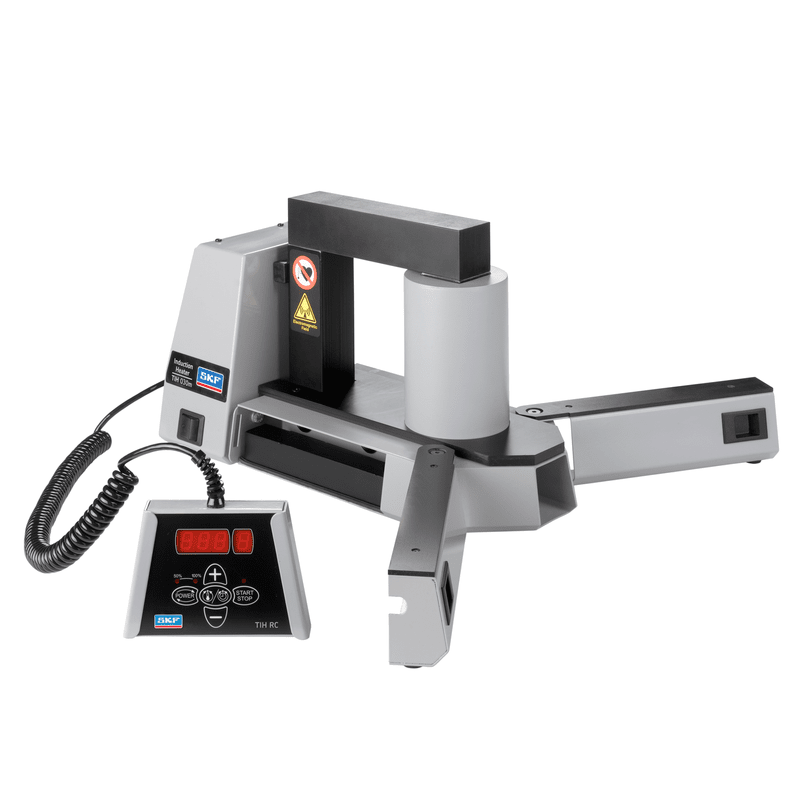

The SKF small induction heater TIH 030m combines high heating capacity with portability. The compact lightweight design makes the TIH 030m portable. Placing the induction coil outside the heater's housing allows the heating of bearings weighing up to 40 kg (88 lb). The induction heater is equipped with thermal overheating protection to reduce the risk of damage to the induction coil and the electronics. In addition to temperature mode, the TIH 030m is equipped with a time mode for heating components other than bearings. The induction heating system is supplied standard with three yokes and is available in two executions: 230V/50-60Hz and 100-110V/50-60Hz.
Call for price
Manufacturer : SKF

Description

High heating capacity of up to 40 kg bearing

  • Compact lightweight design; just 20,9 kg (46.0 lb) facilitating portability
  • 2-step power setting and smaller yokes allow heating smaller bearings safely and at lower power consumption
  • Capable of heating a 28 kg (61.7 lb) bearing in just 20 minutes
  • Temperature mode pre-set at 110 °C (230 °F) to help prevent bearing over-heating
  • Automatic demagnetisation
HEA0070V_NG-TIH030-16x9.png HEA0059V_NG-TIH030-16x9.png

Foldable bearing support arms allow larger diameter bearings to be heated,

and reduce the risk of the bearing toppling during heating.

 Capable of heating a 28 kg (61.7 lb) bearing in just 20 minutes



TECHNICAL DATA
Designation
   TIH 030M/230V
TIH 030M/110V
Description   Induction heater
SKF m20 performance   28 kg (61.7 lb)
Voltage, V/Hz   230V/50-60Hz or 100-110V/50-60Hz
Bearing: - Maximum weight 40 kg (88 lb)
- Maximum bore diameter 20 - 300 mm (0.8 - 11.8 in.)
Temperature control: - Range * 0 - 250 °C (32 - 482 °F)
- Magnetic probe Yes, K-type
- Accuracy (electronics) ± 2 °C (± 3.6 °F)
Time control: - Range 0 - 60 minutes
- Accuracy ± 0,01 sec.
Performance example : - bearing, weight, temperature, time 23136 CC/W33, 28 kg, 110 °C, 20m
Thermometer mode   Yes
Bearing mode   Yes
Power setting   2-step; 50% or 100%
Demagnetisation according to SKF norms (automatic)   Yes (<2 A/cm)
Can heat sealed bearings   Yes
Can heat pre-greased bearings   Yes
Error guiding codes   Yes
Thermal overload protection   Yes
Control panel   Control panel and LED display integrated in remote control
Operating area (w x h)   100 x 135 mm (3.9 x 5.3 in.)
Coil diameter   95 mm (3.7 in.)
Dimensions (w x d x h)   450 x 195 x 210 mm (17.7 x 7.6 x 8.2 in.)
Total weight, including yokes   20,9 kg (46.0 lb)
Maximum power consumption   2,0 kVA
Standard yokes   45 x 45 x 215 mm (1.7 x 1.7 x 8.4 in.) for heating bearings with bore diameter of 65 mm (2.6 in.) and larger.
28 x 28 x 215 mm (1.1 x 1.1 x 8.4 in.) for heating bearings with bore diameter of 40 mm (1.6 in.) and larger.
14 x 14 x 215 mm (0.5 x 0.5 x 8.4 in.) for heating bearings with bore diameter of 20 mm (0.8 in.) and larger
Core cross section   45 x 45 mm (1.7 x 1.7 in.)
Bearing support arms   Yes, foldable
Yoke storage   Yes, internal integrated in foldable bearing support arms
Cooling fan   No
Swivel arm   No
Housing material   Steel and glass filled polyamide
* Maximum heating temperature capacity depends on the weight and geometry of the bearing or workpiece. The heaters can achieve higher temperatures, please contact SKF for advice.



ACCESSORIES
Designation Description
TIH 030-Y6 Optional yoke 40 x 40 x 215 mm (1.6 x 1.6 x 8.5 in)
TIH 030-Y3 Optional yoke 20 x 20 x 215 mm (0.8 x 0.8 x 8.5 in)
TIH 030-YS Support yoke set (x2) 45 x 45 x 100 mm (1.8 x 1.8 x 3.9 in)



SPARE PARTS
Designation Description
TIH 030-Y7 Standard yoke 45 x 45 x 215 mm (1.8 x 1.8 x 8.5 in)
TIH 030-Y4 Standard yoke 28 x 28 x 215 mm (1.1 x 1.1 x 8.5 in)
TIH 030-Y2 Standard yoke 14 x 14 x 215 mm (0.5 x 0.5 x 8.5 in)
TIH 030-P230V Power print 230V - 220-240 V, 50-60 Hz
TIH 030-P110V Power print 110V - 100-120 V, 50-60 Hz
TIH CP Control print
TIH RC Remote control
TIH CB10A Circuit breaker 10A for TIH 030M/230V
TIH CB20A Circuit breaker 20A for TIH 030M/110V
TIH P20 Temperature probe, K-type including cable and plug
LGAF 3E/0.035 Tube of anti-fretting paste for heater maintenance
