Blind housing Puller Kit TMBP20E

SKU:BEA001911

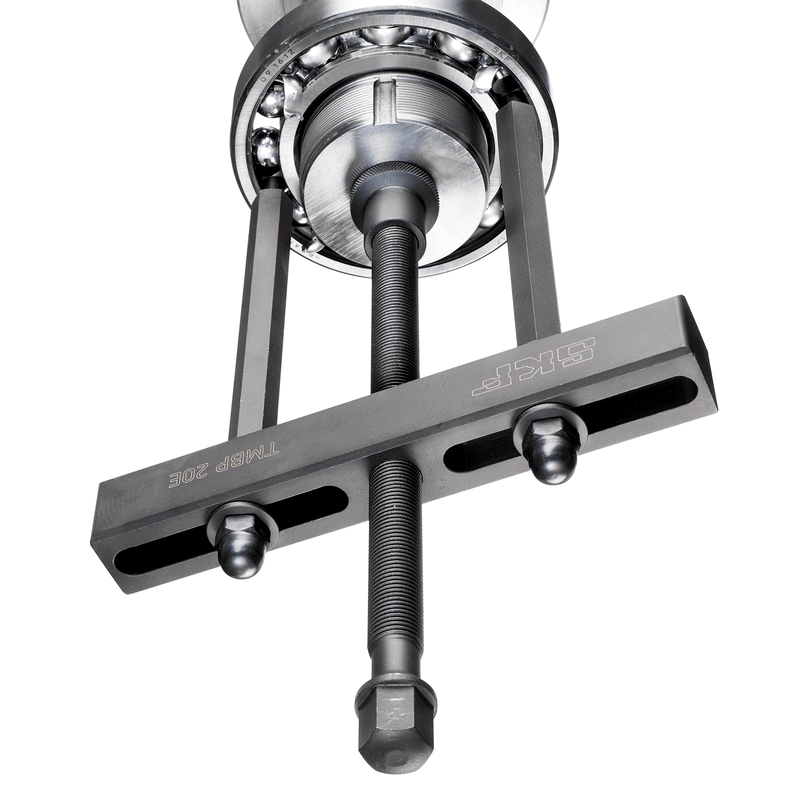

The TMBP 20E is an adapter type puller for dismounting deep groove ball bearings in blind housings (i.e. when accessing the ball bearing is not possible through the outer ring or through the bore) with shaft dimensions between 30 mm and 160 mm (1.18 in and 6.3 in). The use of extension rods allows a long reach of up to 583 mm (23 in).

Manufacturer : SKF

Description

Removes bearing without dismantling machinery

Allows a wide of range of deep groove ball bearings to be dismounted
Ball adapters designed for a long service life
Extension rods allow a reach of up to 583 mm (23 in.)

Spanner stop function on spindle for easy and safe handling
Self-locking nose piece helps minimise damage to shaft, and improves puller stability
Supplied in a sturdy carrying case


Removing a bearing from a blind housing	Supplied in a sturdy carrying case

How it works

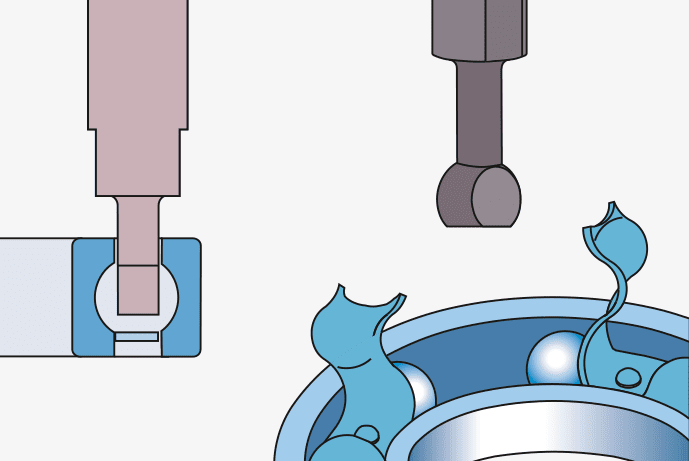

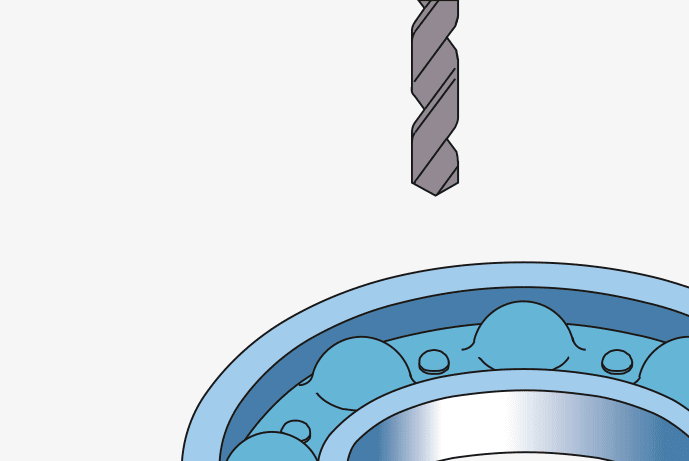

Remove seal and open selected section

of ball cage.

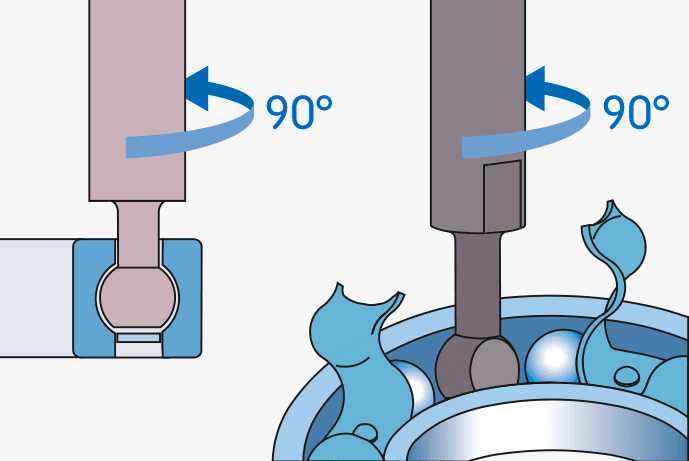

Insert appropriate bearing adapter and

rotate it 90° ensuring positive grip within the bearing race.

Insert the second adapter into prepared

area diametrically opposed.

SUITABLE BEARINGS
SKF TMBP 20E is suitable for dismounting the following deep groove ball bearings
60.. series	62.. series	63.. series	64.. series	16… series
6021–6032	6213–6230	6309–6320	6406–6418	16026–16032

TECHNICAL DATA
Designation	TMBP 20E
Effective arm length	147 - 547 mm (5.8 - 21.5 in.)
Maximum pulling force	55 kN (6.2 ton US)
Dimensions of case	530 x 85 x 180 mm (20.9 x 3.4 x 7.0 in.)
Weight	6,5 kg (14.3 lb)
Set contents	Adapters size A to F (2 pcs each)
	2 x main rods (with nut support rings and nuts)
	4 x extension rods
	Spindle
	Nose piece for spindle
	Beam

ACCESSORIES
Designation	Description
LGEV 2/ 0.035	Extremely high viscosity grease, 35 gram tube
TMMX 280	Puller protection blanket

SPARE PARTS
Designation	Description
TMBP 20E-CX	Toolcase with inlay for TMBP 20E
TDTC 1/X	Toolcase without inlay
