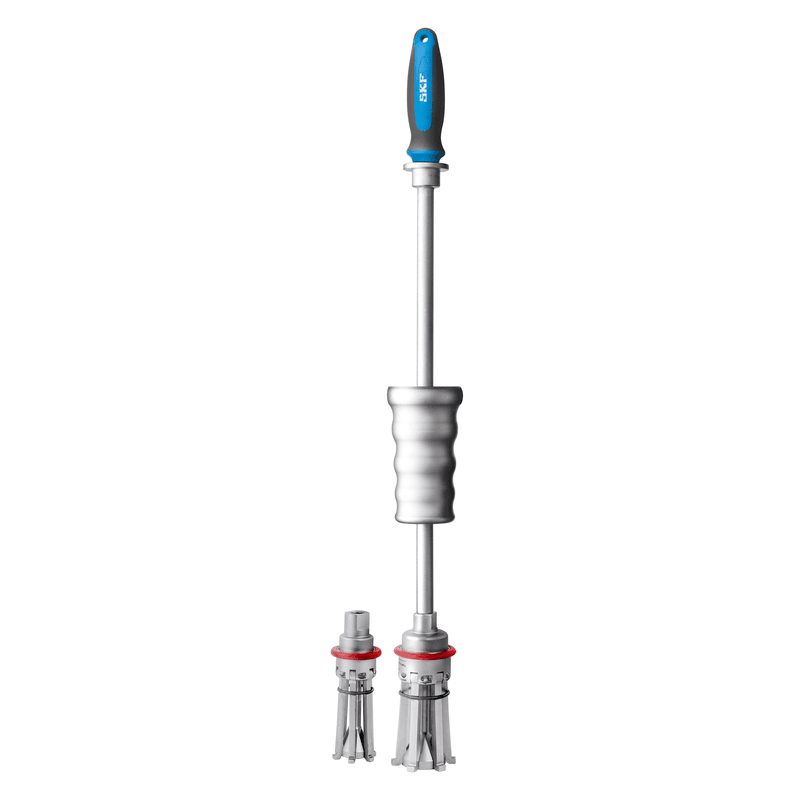

Internal Bearing Puller Kit TMIP 30-60

SKU:BEA000997
The SKF Internal bearing puller kits are designed for dismounting bearings from housings, where the fit is on the outer ring. The pullers are constructed for optimum strength and durability and suit a wide range of bearing bore diameters. A sliding hammer allows high impact forces to be applied and is ergonomically designed to enhance user safety.
Call for price
Manufacturer : SKF

Description

Fast and easy bearing dismounting from housings

TMIC series

  • Expandable collet design made of high strength materials
  • Designed for applications with only a limited space to grip behind the bearing
  • Suit bearing bores between 7-28 mm
  • Supplied in a sturdy carrying case

TMIP series

  • Special design can reduce dismounting time
  • Unlike most internal bearing pullers, the spring loaded extractors can be quickly and easily fitted to the inner ring in just one quick action.
  • Claw design provides a strong and secure grip behind the inner ring, allowing a high puller force to be applied
  • Three different kits to suit bearing bores between 7-28 mm, 30-60 mm and 7-60 mm
  • Supplied in a sturdy carrying case
PUL0101-2V_NG-TMIP-C-16x9.png MEC0074V_NG-TMIP-16x9.png
  A sliding hammer allows high impact forces

Publications

TECHNICAL DATA
Designation TMIP 30–60 MEC0093_NG-TMIP3060-16x9TR.png
Bearing bore diameter 30–60 mm (1.2–2.4 in.)
Carrying case dimensions
(l x w x h)		 530 x 85 x 180 mm
(20.9 x 3.4 x 7.0 in.)
Weight 5,4 kg (11.9 lb)



EXTRACTOR DIMENSIONS
TMIP 30-60 Bearing width Space behind bearing Housing depth
  mm in mm in mm in
TMIP E30-40 >35 >1.4 11,5 0.45 97 3.8
TMIP E45-60 >64 >2.5 15 0.6 102 4.0
