Manufacturer : SKF

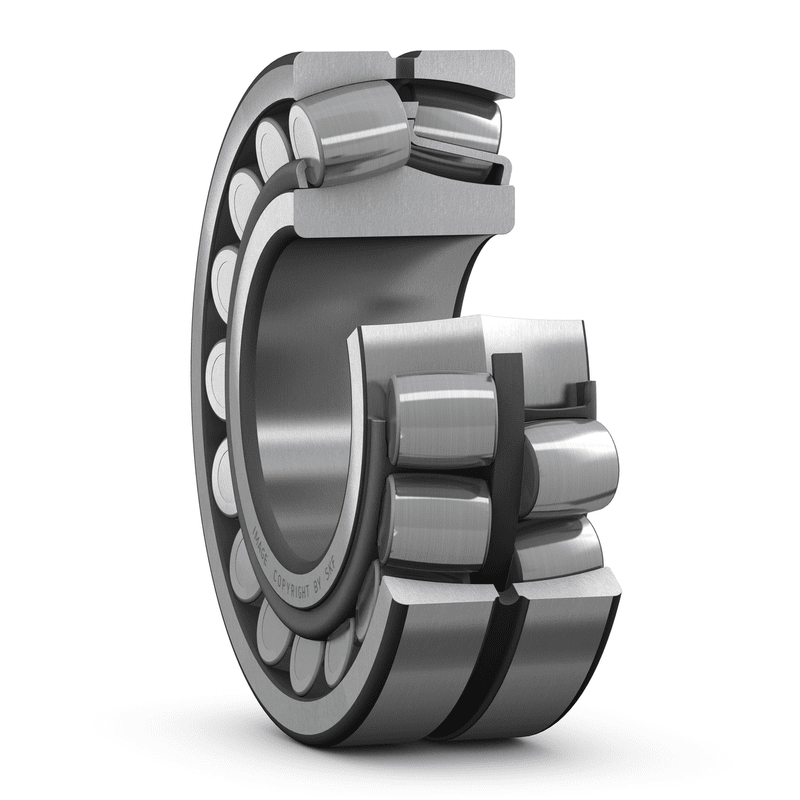

Description
Technical specification
DIMENSIONS
| d |
40 mm
|
|
|---|---|---|
| D |
90 mm
|
|
| B |
23 mm
|
|
| d2 |
≈ 60 mm
|
|
| D1 |
≈ 79.8 mm
|
|
| b |
5.5 mm
|
|
| K |
3 mm
|
|
| r1,2 |
min. 1.5 mm
|
ABUTMENT DIMENSIONS
| da |
min. 49 mm
|
|
|---|---|---|
| Da |
max. 81 mm
|
|
| ra |
max. 1.5 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
107 kN
|
|---|---|---|
| Basic static load rating | C0 |
108 kN
|
| Fatigue load limit | Pu |
11.8 kN
|
| Reference speed |
7 000 r/min
|
|
| Limiting speed |
9 500 r/min
|
|
| Calculation factor | e |
0.24
|
| Calculation factor | Y1 |
2.8
|
| Calculation factor | Y2 |
4.2
|
| Calculation factor | Y0 |
2.8
|
MASS
| Mass bearing |
0.74 kg
|
|---|
