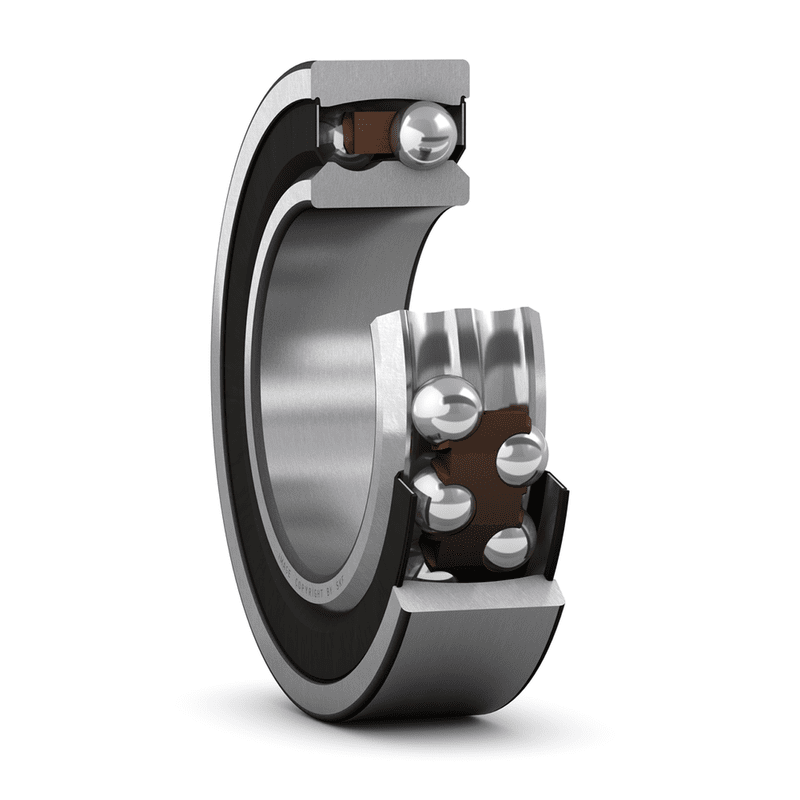

Self-aligning ball bearings 2206E2RS1TN9/C3
SKU:BEA001555
Self-aligning ball bearings 2206E2RS1TN9/C3
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
30 mm
|
|
|---|---|---|
| D |
62 mm
|
|
| B |
20 mm
|
|
| d2 |
≈ 36.7 mm
|
|
| D2 |
≈ 54.06 mm
|
|
| r1,2 |
min. 1 mm
|
ABUTMENT DIMENSIONS
| da |
min. 35.6 mm
|
|
|---|---|---|
| da |
max. 36.5 mm
|
|
| Da |
max. 56.4 mm
|
|
| ra |
max. 1 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
15.6 kN
|
|---|---|---|
| Basic static load rating | C0 |
4.65 kN
|
| Fatigue load limit | Pu |
0.24 kN
|
| Limiting speed |
7 500 r/min
|
|
| Permissible angular misalignment | α |
1.5 °
|
| Calculation factor | kr |
0.045
|
| Calculation factor | e |
0.25
|
| Calculation factor | Y0 |
2.5
|
| Calculation factor | Y1 |
2.5
|
| Calculation factor | Y2 |
3.9
|
MASS
| Mass bearing |
0.26 kg
|
|---|
