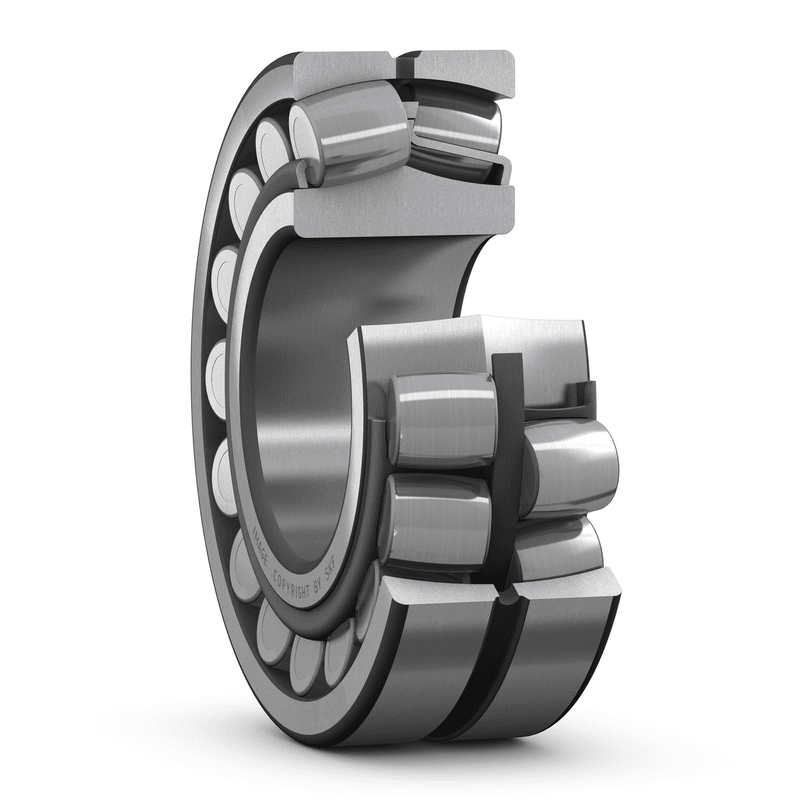

Spherical roller bearings 22212EK/C3
SKU:BEA000599
Spherical roller bearings 22212EK/C3
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
60 mm
|
|
|---|---|---|
| D |
110 mm
|
|
| B |
28 mm
|
|
| d2 |
≈ 72.7 mm
|
|
| D1 |
≈ 96.5 mm
|
|
| b |
6 mm
|
|
| K |
3 mm
|
|
| r1,2 |
min. 1.5 mm
|
|
|
Tapered bore, taper 1:12
|
ABUTMENT DIMENSIONS
| Da |
max. 101 mm
|
|
|---|---|---|
| ra |
max. 1.5 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
159 kN
|
|---|---|---|
| Basic static load rating | C0 |
166 kN
|
| Fatigue load limit | Pu |
18.6 kN
|
| Reference speed |
5 600 r/min
|
|
| Limiting speed |
7 500 r/min
|
|
| Calculation factor | e |
0.24
|
| Calculation factor | Y1 |
2.8
|
| Calculation factor | Y2 |
4.2
|
| Calculation factor | Y0 |
2.8
|
MASS
| Mass bearing |
1.15 kg
|
|---|
MOUNTING INFORMATION
| Recommended lock nut tightening angle | α |
115 °
|
|---|
