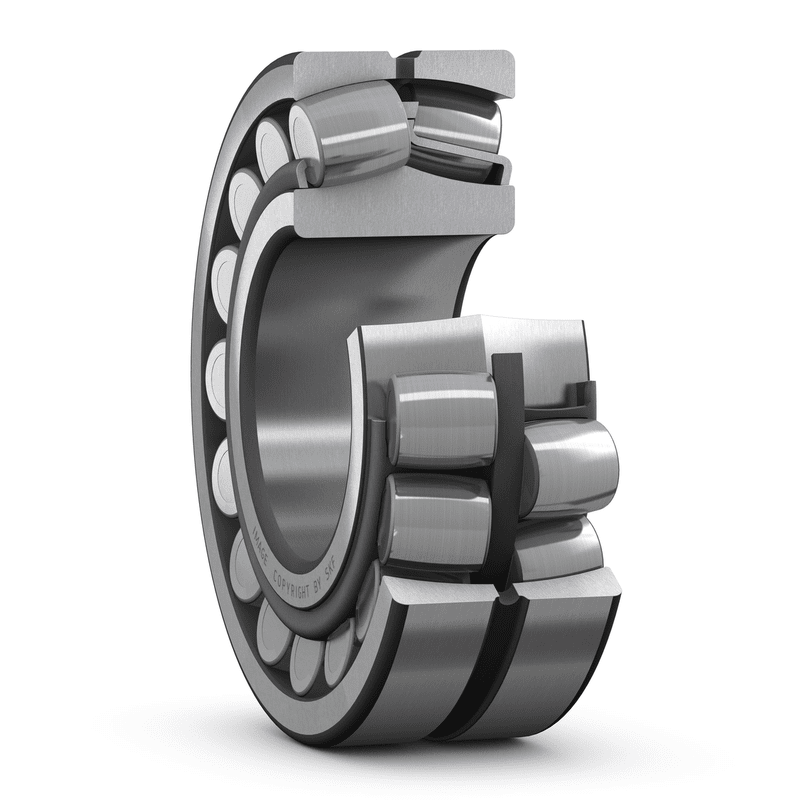

Spherical roller bearings 22216EK/C3
SKU:BEA000592
Spherical roller bearings 22216EK/C3
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
80 mm
|
|
|---|---|---|
| D |
140 mm
|
|
| B |
33 mm
|
|
| d2 |
≈ 94.7 mm
|
|
| D1 |
≈ 124 mm
|
|
| b |
6 mm
|
|
| K |
3 mm
|
|
| r1,2 |
min. 2 mm
|
|
|
Tapered bore, taper 1:12
|
ABUTMENT DIMENSIONS
| Da |
max. 129 mm
|
|
|---|---|---|
| ra |
max. 2 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
243 kN
|
|---|---|---|
| Basic static load rating | C0 |
270 kN
|
| Fatigue load limit | Pu |
29 kN
|
| Reference speed |
4 300 r/min
|
|
| Limiting speed |
6 000 r/min
|
|
| Calculation factor | e |
0.22
|
| Calculation factor | Y1 |
3
|
| Calculation factor | Y2 |
4.6
|
| Calculation factor | Y0 |
2.8
|
MASS
| Mass bearing |
2.05 kg
|
|---|
MOUNTING INFORMATION
| Recommended lock nut tightening angle | α |
130 °
|
|---|
