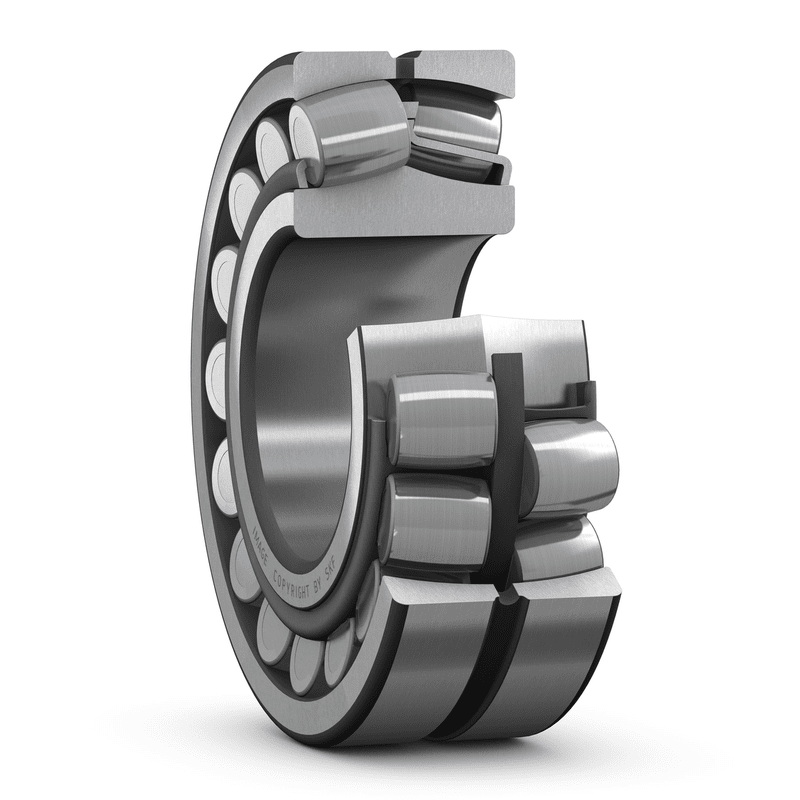

Spherical roller bearings 22226EK/C3
SKU:BEA000586
Spherical roller bearings 22226EK/C3
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
130 mm
|
|
|---|---|---|
| D |
230 mm
|
|
| B |
64 mm
|
|
| d2 |
≈ 152 mm
|
|
| D1 |
≈ 201 mm
|
|
| b |
11.1 mm
|
|
| K |
6 mm
|
|
| r1,2 |
min. 3 mm
|
|
|
Tapered bore, taper 1:12
|
ABUTMENT DIMENSIONS
| Da |
max. 216 mm
|
|
|---|---|---|
| ra |
max. 2.5 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
758 kN
|
|---|---|---|
| Basic static load rating | C0 |
930 kN
|
| Fatigue load limit | Pu |
88 kN
|
| Reference speed |
2 600 r/min
|
|
| Limiting speed |
3 600 r/min
|
|
| Calculation factor | e |
0.27
|
| Calculation factor | Y1 |
2.5
|
| Calculation factor | Y2 |
3.7
|
| Calculation factor | Y0 |
2.5
|
MASS
| Mass bearing |
11 kg
|
|---|
