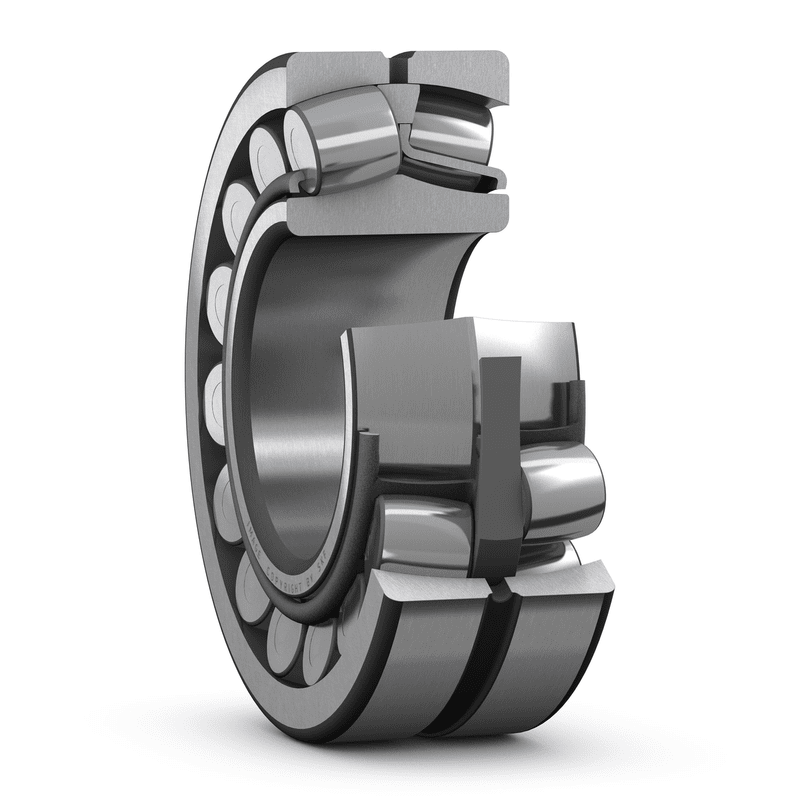

Spherical roller bearings 22319EJA/VA405
SKU:SRB000058
Spherical roller bearings 22319EJA/VA405
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
95 mm
|
|
|---|---|---|
| D |
200 mm
|
|
| B |
67 mm
|
|
| d2 |
≈ 118 mm
|
|
| D1 |
≈ 168 mm
|
|
| b |
11.1 mm
|
|
| K |
6 mm
|
|
| r1,2 |
min. 3 mm
|
ABUTMENT DIMENSIONS
| da |
min. 109 mm
|
|
|---|---|---|
| Da |
max. 186 mm
|
|
| ra |
max. 2.5 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
699 kN
|
|---|---|---|
| Basic static load rating | C0 |
765 kN
|
| Fatigue load limit | Pu |
73.5 kN
|
| Reference speed |
2 600 r/min
|
|
| Limiting speed |
3 400 r/min
|
|
| Calculation factor | e |
0.33
|
| Calculation factor | Y1 |
2
|
| Calculation factor | Y2 |
3
|
| Calculation factor | Y0 |
2
|
| Permissible rotational acceleration (oil lubrication) |
628 m/s²
|
|
| Permissible linear acceleration (oil lubrication) |
196 m/s²
|
MASS
| Mass bearing |
10.5 kg
|
|---|
