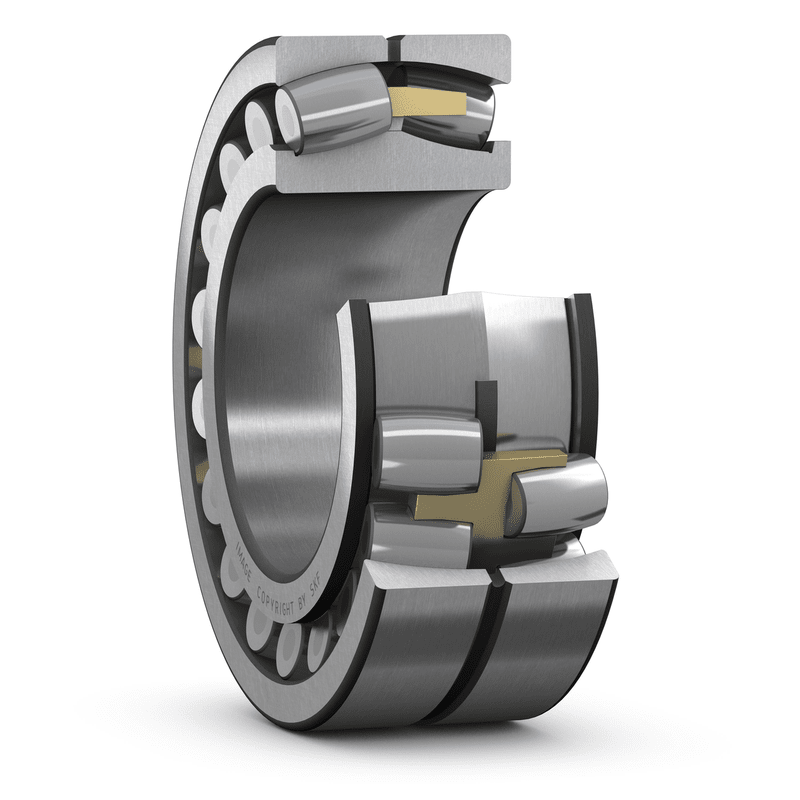

Spherical roller bearings 23168CACK/C3W33
SKU:SPH000169
Spherical roller bearings 23168CACK/C3W33
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
340 mm
|
|
|---|---|---|
| D |
580 mm
|
|
| B |
190 mm
|
|
| d2 |
≈ 412 mm
|
|
| D1 |
≈ 498 mm
|
|
| b |
22.3 mm
|
|
| K |
12 mm
|
|
| r1,2 |
min. 5 mm
|
|
|
Tapered bore, taper 1:12
|
ABUTMENT DIMENSIONS
| da |
min. 351 mm
|
|
|---|---|---|
| Da |
max. 560 mm
|
|
| ra |
max. 4 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
4 285 kN
|
|---|---|---|
| Basic static load rating | C0 |
6 550 kN
|
| Fatigue load limit | Pu |
465 kN
|
| Reference speed |
800 r/min
|
|
| Limiting speed |
1 000 r/min
|
|
| Calculation factor | e |
0.31
|
| Calculation factor | Y1 |
2.2
|
| Calculation factor | Y2 |
3.3
|
| Calculation factor | Y0 |
2.2
|
MASS
| Mass bearing |
205 kg
|
|---|
