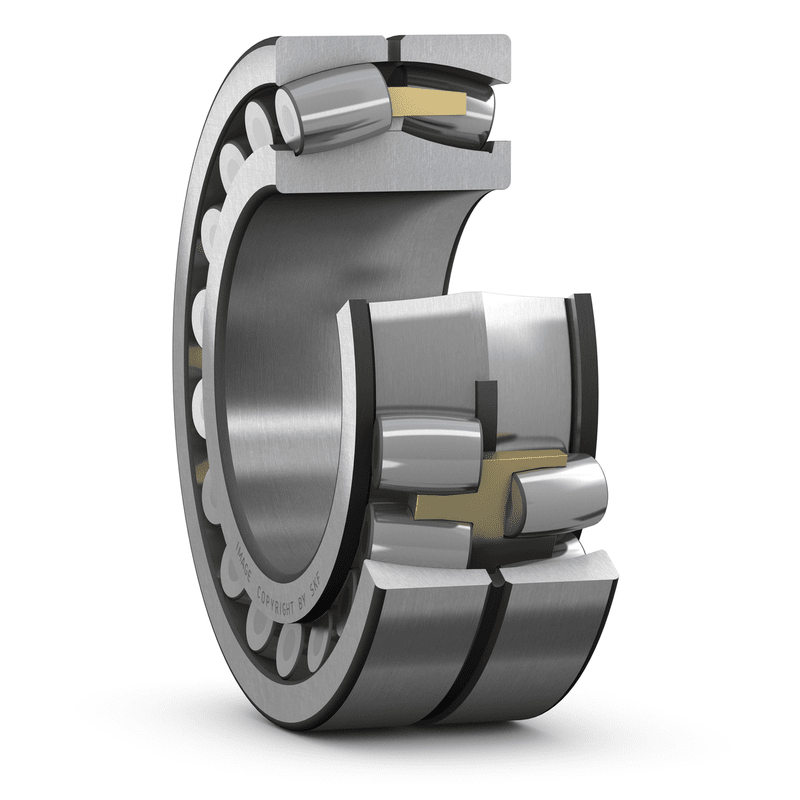

Spherical roller bearings 23180CA/C3W33
SKU:SRB000034
Spherical roller bearings 23180CA/C3W33
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
400 mm
|
|
|---|---|---|
| D |
650 mm
|
|
| B |
200 mm
|
|
| d2 |
≈ 475 mm
|
|
| D1 |
≈ 566 mm
|
|
| b |
22.3 mm
|
|
| K |
12 mm
|
|
| r1,2 |
min. 6 mm
|
ABUTMENT DIMENSIONS
| da |
min. 426 mm
|
|
|---|---|---|
| Da |
max. 624 mm
|
|
| ra |
max. 5 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
4 864 kN
|
|---|---|---|
| Basic static load rating | C0 |
7 650 kN
|
| Fatigue load limit | Pu |
530 kN
|
| Reference speed |
530 r/min
|
|
| Limiting speed |
950 r/min
|
|
| Calculation factor | e |
0.28
|
| Calculation factor | Y1 |
2.4
|
| Calculation factor | Y2 |
3.6
|
| Calculation factor | Y0 |
2.5
|
MASS
| Mass bearing |
260 kg
|
|---|
