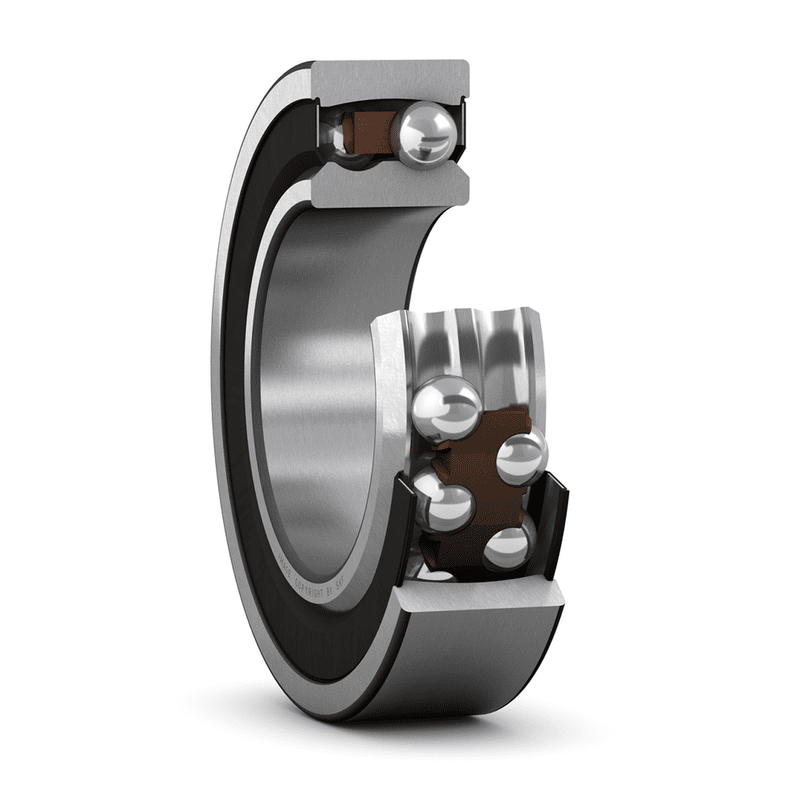

Self-aligning ball bearings 2202E2RS1TN9
SKU:BEA001809
Self-aligning ball bearings 2202E2RS1TN9
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
15 mm
|
|
|---|---|---|
| D |
35 mm
|
|
| B |
14 mm
|
|
| d2 |
≈ 19.05 mm
|
|
| D2 |
≈ 30.4 mm
|
|
| r1,2 |
min. 0.6 mm
|
ABUTMENT DIMENSIONS
| da |
min. 19 mm
|
|
|---|---|---|
| da |
max. 19 mm
|
|
| Da |
max. 30.8 mm
|
|
| ra |
max. 0.6 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
7.41 kN
|
|---|---|---|
| Basic static load rating | C0 |
1.76 kN
|
| Fatigue load limit | Pu |
0.09 kN
|
| Limiting speed |
14 000 r/min
|
|
| Permissible angular misalignment | α |
1.5 °
|
| Calculation factor | kr |
0.045
|
| Calculation factor | e |
0.33
|
| Calculation factor | Y0 |
2
|
| Calculation factor | Y1 |
1.9
|
| Calculation factor | Y2 |
3
|
MASS
| Mass bearing |
0.058 kg
|
|---|
