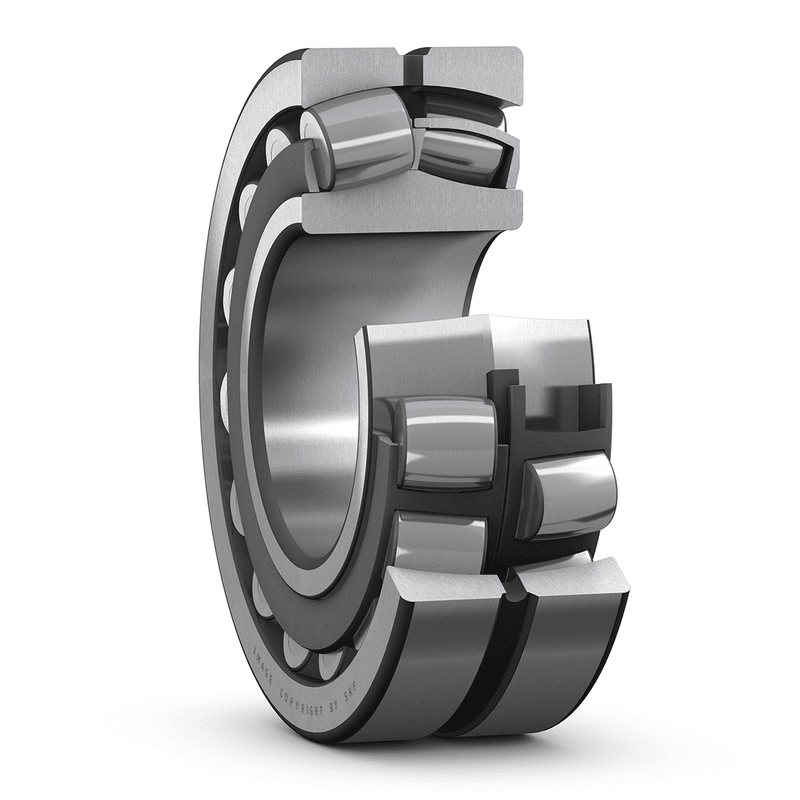

Spherical roller bearings 23222CC/C3W33
SKU:BEA001652
Spherical roller bearings 23222CC/C3W33
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
110 mm
|
|
|---|---|---|
| D |
200 mm
|
|
| B |
69.8 mm
|
|
| d2 |
≈ 130 mm
|
|
| D1 |
≈ 169 mm
|
|
| b |
8.3 mm
|
|
| K |
4.5 mm
|
|
| r1,2 |
min. 2.1 mm
|
ABUTMENT DIMENSIONS
| da |
min. 122 mm
|
|
|---|---|---|
| Da |
max. 188 mm
|
|
| ra |
max. 2 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
626 kN
|
|---|---|---|
| Basic static load rating | C0 |
765 kN
|
| Fatigue load limit | Pu |
76.5 kN
|
| Reference speed |
2 200 r/min
|
|
| Limiting speed |
3 200 r/min
|
|
| Calculation factor | e |
0.33
|
| Calculation factor | Y1 |
2
|
| Calculation factor | Y2 |
3
|
| Calculation factor | Y0 |
2
|
MASS
| Mass bearing |
9.6 kg
|
|---|
