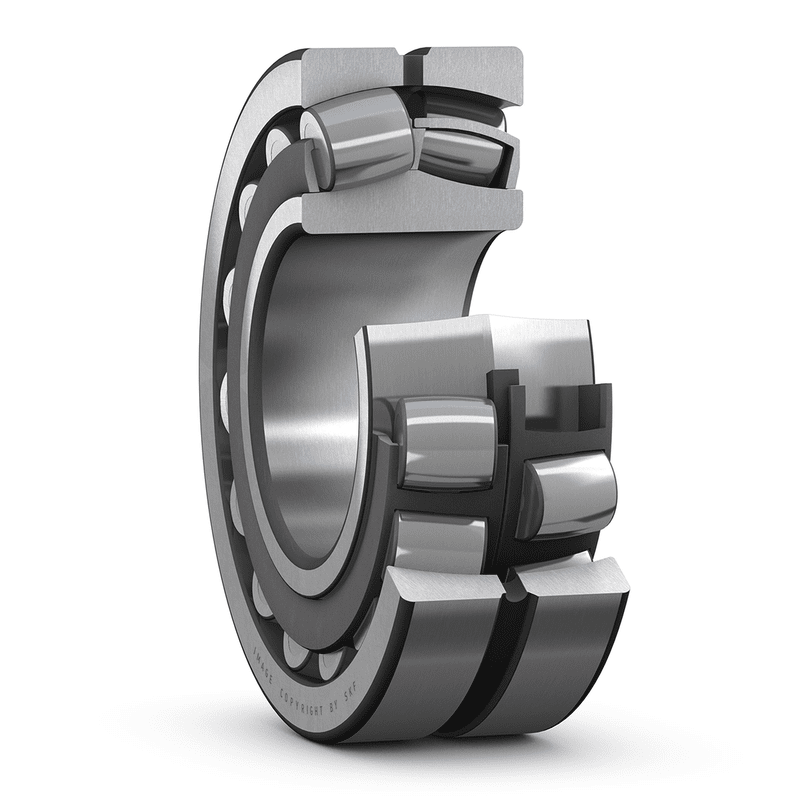

Spherical roller bearings 24152CC/C3W33
SKU:BEA001618
Spherical roller bearings 24152CC/C3W33
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
260 mm
|
|
|---|---|---|
| D |
440 mm
|
|
| B |
180 mm
|
|
| d2 |
≈ 293 mm
|
|
| D1 |
≈ 368 mm
|
|
| b |
13.9 mm
|
|
| K |
7.5 mm
|
|
| r1,2 |
min. 4 mm
|
ABUTMENT DIMENSIONS
| da |
min. 277 mm
|
|
|---|---|---|
| Da |
max. 423 mm
|
|
| ra |
max. 3 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
3 086 kN
|
|---|---|---|
| Basic static load rating | C0 |
4 800 kN
|
| Fatigue load limit | Pu |
380 kN
|
| Reference speed |
670 r/min
|
|
| Limiting speed |
950 r/min
|
|
| Calculation factor | e |
0.4
|
| Calculation factor | Y1 |
1.7
|
| Calculation factor | Y2 |
2.5
|
| Calculation factor | Y0 |
1.6
|
MASS
| Mass bearing |
110 kg
|
|---|
