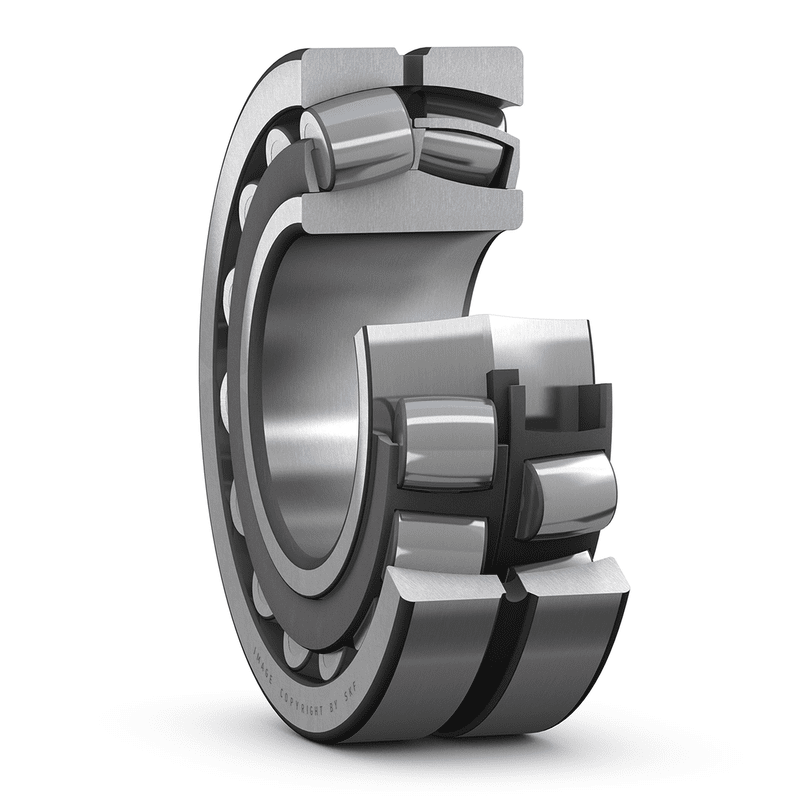

Spherical roller bearings 23244CC/C3W33
SKU:SPH000077
Spherical roller bearings 23244CC/C3W33
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
220 mm
|
|
|---|---|---|
| D |
400 mm
|
|
| B |
144 mm
|
|
| d2 |
≈ 259 mm
|
|
| D1 |
≈ 338 mm
|
|
| b |
16.7 mm
|
|
| K |
9 mm
|
|
| r1,2 |
min. 4 mm
|
ABUTMENT DIMENSIONS
| da |
min. 237 mm
|
|
|---|---|---|
| Da |
max. 383 mm
|
|
| ra |
max. 3 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
2 485 kN
|
|---|---|---|
| Basic static load rating | C0 |
3 450 kN
|
| Fatigue load limit | Pu |
285 kN
|
| Reference speed |
1 100 r/min
|
|
| Limiting speed |
1 500 r/min
|
|
| Calculation factor | e |
0.35
|
| Calculation factor | Y1 |
1.9
|
| Calculation factor | Y2 |
2.9
|
| Calculation factor | Y0 |
1.8
|
MASS
| Mass bearing |
79.5 kg
|
|---|
