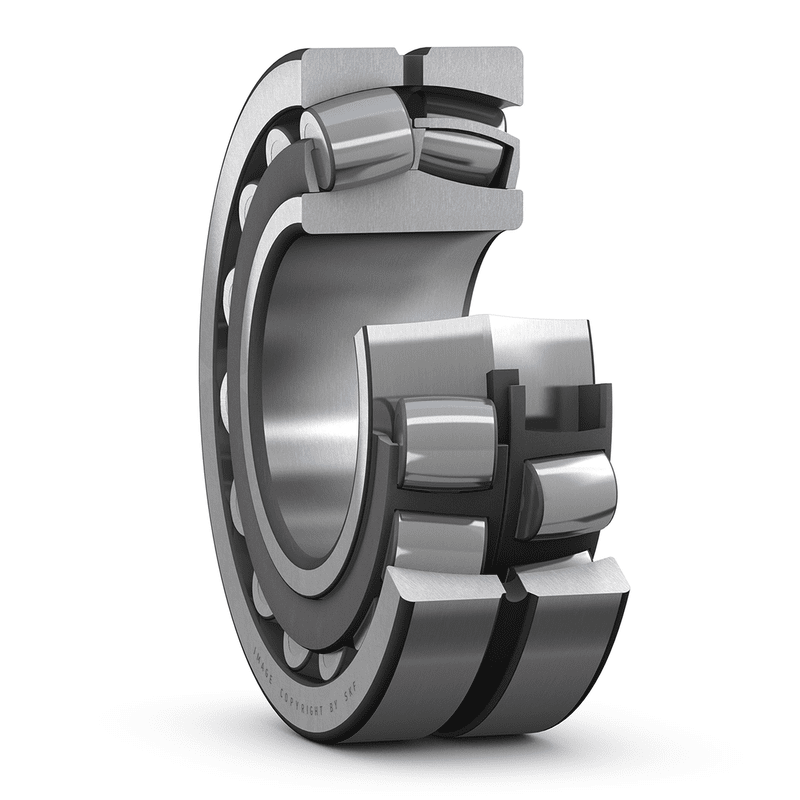

Spherical roller bearings 23264CC/C3W33
SKU:SRB000049
Spherical roller bearings 23264CC/C3W33
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
320 mm
|
|
|---|---|---|
| D |
580 mm
|
|
| B |
208 mm
|
|
| d2 |
≈ 382 mm
|
|
| D1 |
≈ 493 mm
|
|
| b |
22.3 mm
|
|
| K |
12 mm
|
|
| r1,2 |
min. 5 mm
|
ABUTMENT DIMENSIONS
| da |
min. 340 mm
|
|
|---|---|---|
| Da |
max. 560 mm
|
|
| ra |
max. 4 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
4 607 kN
|
|---|---|---|
| Basic static load rating | C0 |
6 700 kN
|
| Fatigue load limit | Pu |
475 kN
|
| Reference speed |
700 r/min
|
|
| Limiting speed |
950 r/min
|
|
| Calculation factor | e |
0.35
|
| Calculation factor | Y1 |
1.9
|
| Calculation factor | Y2 |
2.9
|
| Calculation factor | Y0 |
1.8
|
MASS
| Mass bearing |
250 kg
|
|---|
