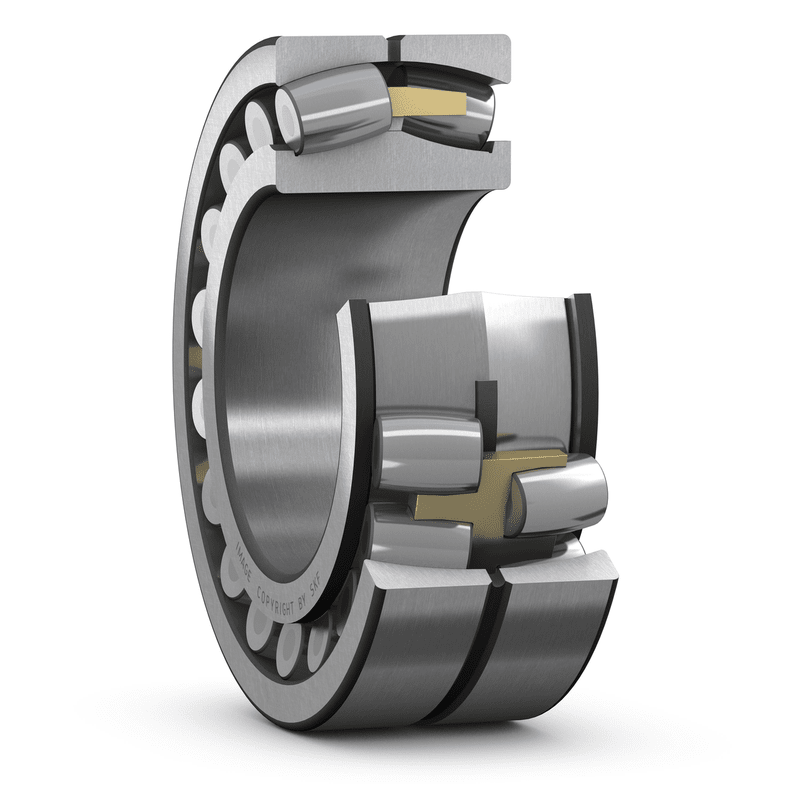

Spherical roller bearings 239/900CAK/C3W33
SKU:SPH000076
Spherical roller bearings 239/900CAK/C3W33
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
900 mm
|
|
|---|---|---|
| D |
1 180 mm
|
|
| B |
206 mm
|
|
| d2 |
≈ 996 mm
|
|
| D1 |
≈ 1 101 mm
|
|
| b |
22.3 mm
|
|
| K |
12 mm
|
|
| r1,2 |
min. 6 mm
|
|
|
Tapered bore, taper 1:12
|
ABUTMENT DIMENSIONS
| Da |
max. 1 157 mm
|
|
|---|---|---|
| ra |
max. 5 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
7 652 kN
|
|---|---|---|
| Basic static load rating | C0 |
17 000 kN
|
| Fatigue load limit | Pu |
1 000 kN
|
| Reference speed |
240 r/min
|
|
| Limiting speed |
450 r/min
|
|
| Calculation factor | e |
0.15
|
| Calculation factor | Y1 |
4.5
|
| Calculation factor | Y2 |
6.7
|
| Calculation factor | Y0 |
4.5
|
MASS
| Mass bearing |
585 kg
|
|---|
