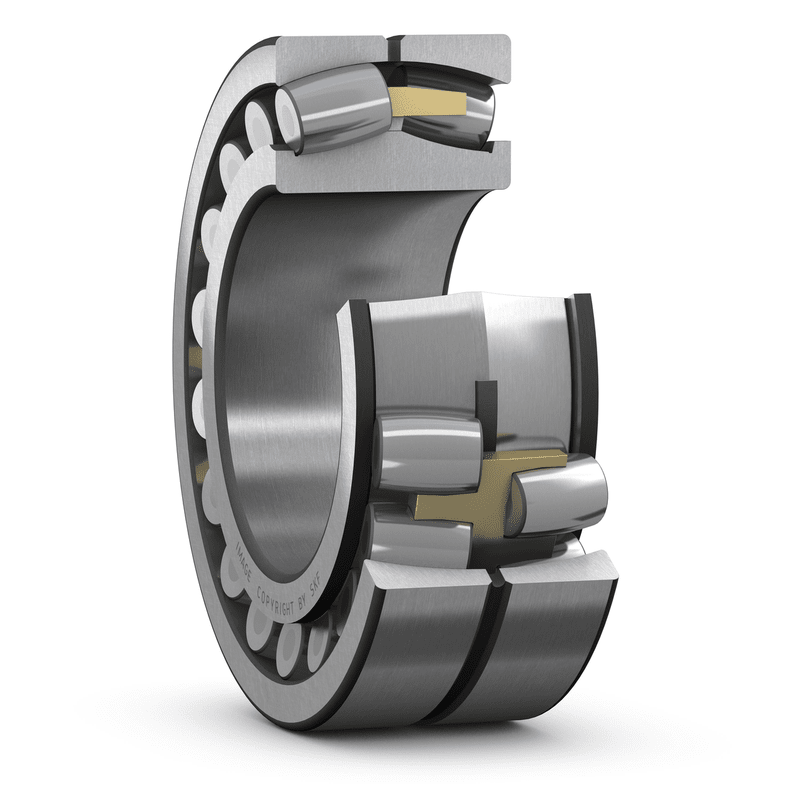

Spherical roller bearings 23992CA/C3W33
SKU:BEA001466
Spherical roller bearings 23992CA/C3W33
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
460 mm
|
|
|---|---|---|
| D |
620 mm
|
|
| B |
118 mm
|
|
| d2 |
≈ 516 mm
|
|
| D1 |
≈ 574 mm
|
|
| b |
16.7 mm
|
|
| K |
9 mm
|
|
| r1,2 |
min. 4 mm
|
ABUTMENT DIMENSIONS
| da |
min. 475 mm
|
|
|---|---|---|
| Da |
max. 605 mm
|
|
| ra |
max. 3 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
2 558 kN
|
|---|---|---|
| Basic static load rating | C0 |
5 000 kN
|
| Fatigue load limit | Pu |
355 kN
|
| Reference speed |
600 r/min
|
|
| Limiting speed |
1 000 r/min
|
|
| Calculation factor | e |
0.16
|
| Calculation factor | Y1 |
4.2
|
| Calculation factor | Y2 |
6.3
|
| Calculation factor | Y0 |
4
|
MASS
| Mass bearing |
105 kg
|
|---|
