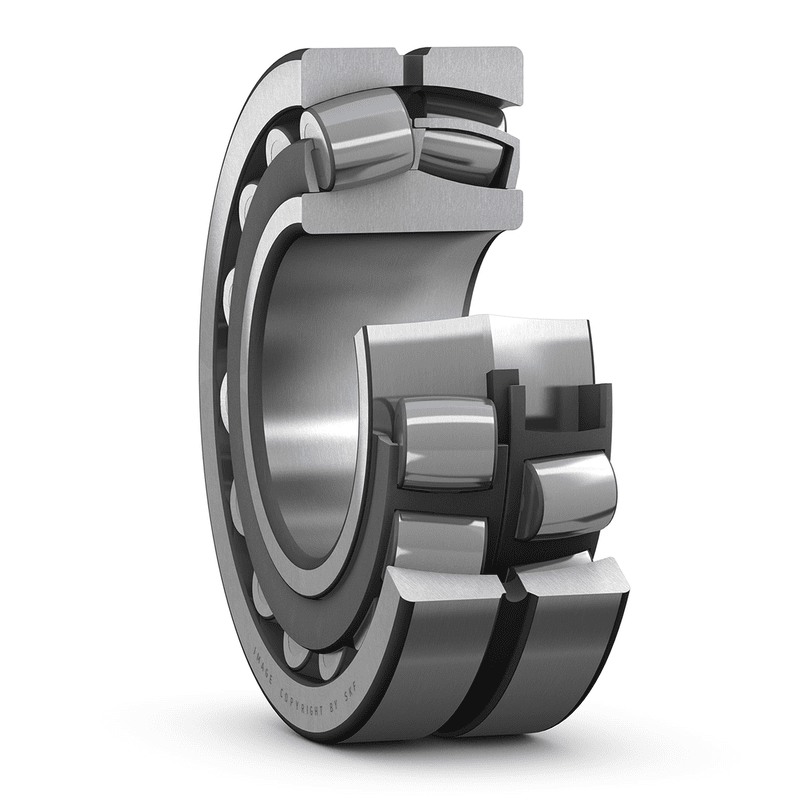

Spherical roller bearings 24030CC/C3W33
SKU:BEA001000
Spherical roller bearings 24030CC/C3W33
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
150 mm
|
|
|---|---|---|
| D |
225 mm
|
|
| B |
75 mm
|
|
| d2 |
≈ 165 mm
|
|
| D1 |
≈ 197 mm
|
|
| b |
6 mm
|
|
| K |
3 mm
|
|
| r1,2 |
min. 2.1 mm
|
ABUTMENT DIMENSIONS
| da |
min. 161 mm
|
|
|---|---|---|
| Da |
max. 214 mm
|
|
| ra |
max. 2 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
680 kN
|
|---|---|---|
| Basic static load rating | C0 |
1 040 kN
|
| Fatigue load limit | Pu |
100 kN
|
| Reference speed |
1 800 r/min
|
|
| Limiting speed |
2 600 r/min
|
|
| Calculation factor | e |
0.3
|
| Calculation factor | Y1 |
2.3
|
| Calculation factor | Y2 |
3.4
|
| Calculation factor | Y0 |
2.2
|
MASS
| Mass bearing |
10.5 kg
|
|---|
