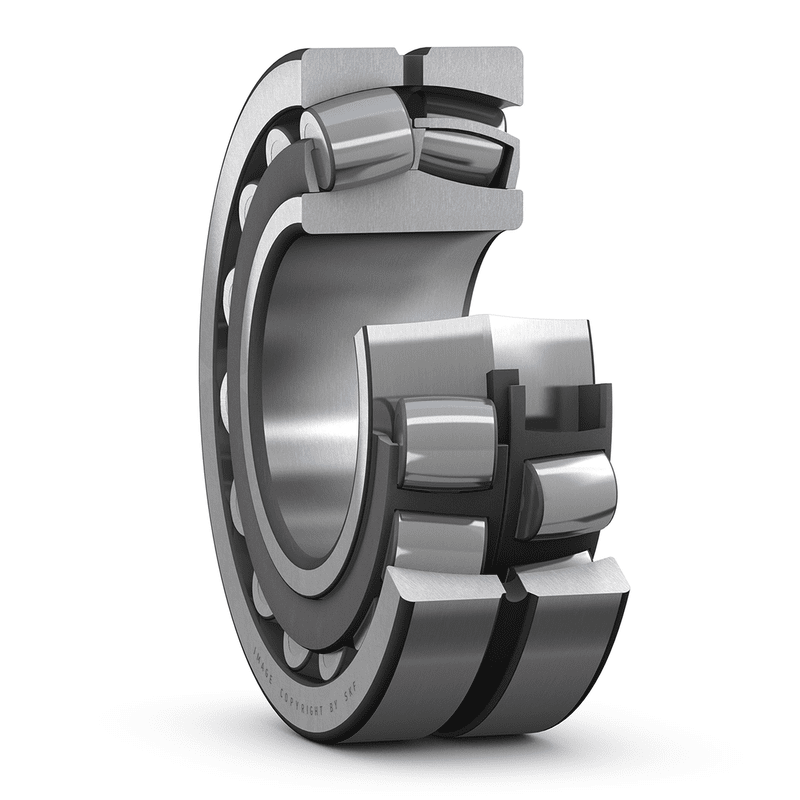

Spherical roller bearings 24068CC/C3W33
SKU:SPH000188
Spherical roller bearings 24068CC/C3W33
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
340 mm
|
|
|---|---|---|
| D |
520 mm
|
|
| B |
180 mm
|
|
| d2 |
≈ 377 mm
|
|
| D1 |
≈ 453 mm
|
|
| b |
16.7 mm
|
|
| K |
9 mm
|
|
| r1,2 |
min. 5 mm
|
ABUTMENT DIMENSIONS
| da |
min. 358 mm
|
|
|---|---|---|
| Da |
max. 502 mm
|
|
| ra |
max. 4 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
3 621 kN
|
|---|---|---|
| Basic static load rating | C0 |
6 200 kN
|
| Fatigue load limit | Pu |
475 kN
|
| Reference speed |
750 r/min
|
|
| Limiting speed |
1 100 r/min
|
|
| Calculation factor | e |
0.33
|
| Calculation factor | Y1 |
2
|
| Calculation factor | Y2 |
3
|
| Calculation factor | Y0 |
2
|
MASS
| Mass bearing |
140 kg
|
|---|
