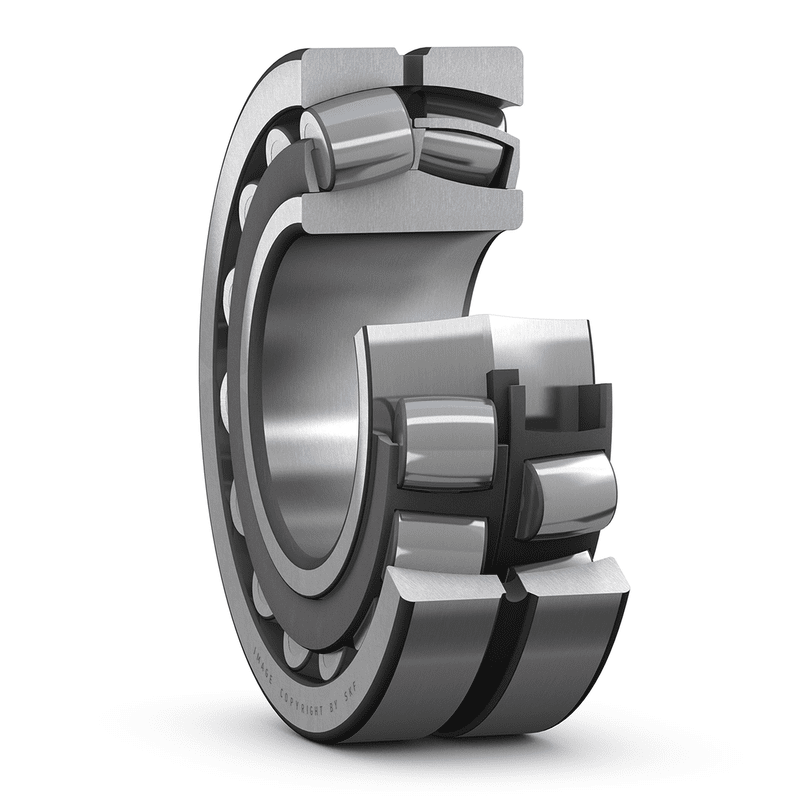

Spherical roller bearings 24140CC/C3W33
SKU:SRB000069
Spherical roller bearings 24140CC/C3W33
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
200 mm
|
|
|---|---|---|
| D |
340 mm
|
|
| B |
140 mm
|
|
| d2 |
≈ 226 mm
|
|
| D1 |
≈ 284 mm
|
|
| b |
11.1 mm
|
|
| K |
6 mm
|
|
| r1,2 |
min. 3 mm
|
ABUTMENT DIMENSIONS
| da |
min. 214 mm
|
|
|---|---|---|
| Da |
max. 326 mm
|
|
| ra |
max. 2.5 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
1 865 kN
|
|---|---|---|
| Basic static load rating | C0 |
2 800 kN
|
| Fatigue load limit | Pu |
232 kN
|
| Reference speed |
1 000 r/min
|
|
| Limiting speed |
1 400 r/min
|
|
| Calculation factor | e |
0.4
|
| Calculation factor | Y1 |
1.7
|
| Calculation factor | Y2 |
2.5
|
| Calculation factor | Y0 |
1.6
|
MASS
| Mass bearing |
51.5 kg
|
|---|
