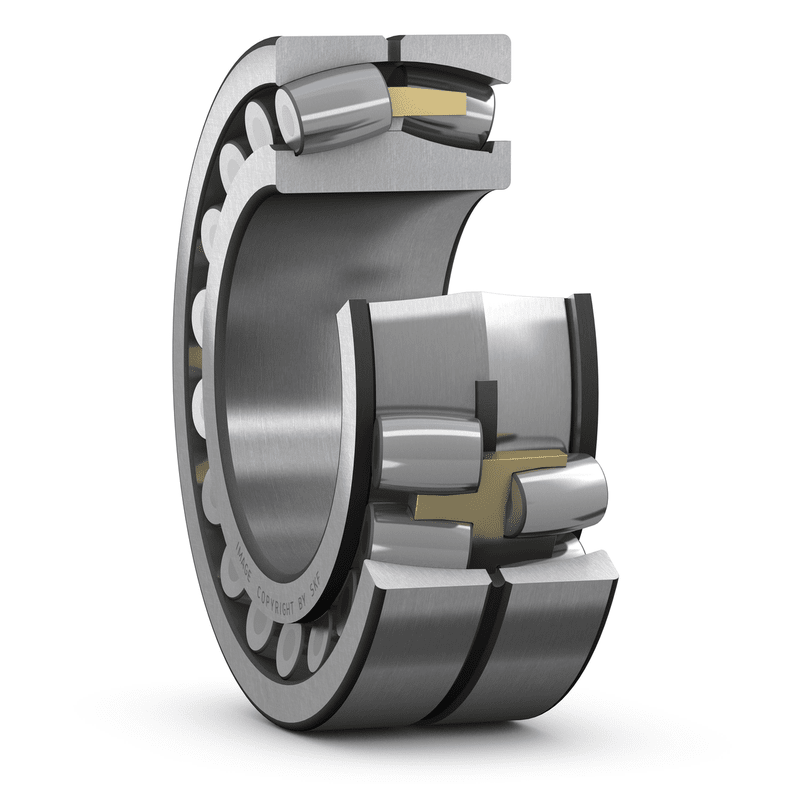

Spherical roller bearings 24180ECA/C3W33
SKU:BEA001654
Spherical roller bearings 24180ECA/C3W33
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
400 mm
|
|
|---|---|---|
| D |
650 mm
|
|
| B |
250 mm
|
|
| d2 |
≈ 467 mm
|
|
| D1 |
≈ 559 mm
|
|
| b |
22.3 mm
|
|
| K |
12 mm
|
|
| r1,2 |
min. 6 mm
|
ABUTMENT DIMENSIONS
| da |
min. 426 mm
|
|
|---|---|---|
| Da |
max. 624 mm
|
|
| ra |
max. 5 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
6 331 kN
|
|---|---|---|
| Basic static load rating | C0 |
10 600 kN
|
| Fatigue load limit | Pu |
735 kN
|
| Reference speed |
340 r/min
|
|
| Limiting speed |
500 r/min
|
|
| Calculation factor | e |
0.37
|
| Calculation factor | Y1 |
1.8
|
| Calculation factor | Y2 |
2.7
|
| Calculation factor | Y0 |
1.8
|
MASS
| Mass bearing |
320 kg
|
|---|
