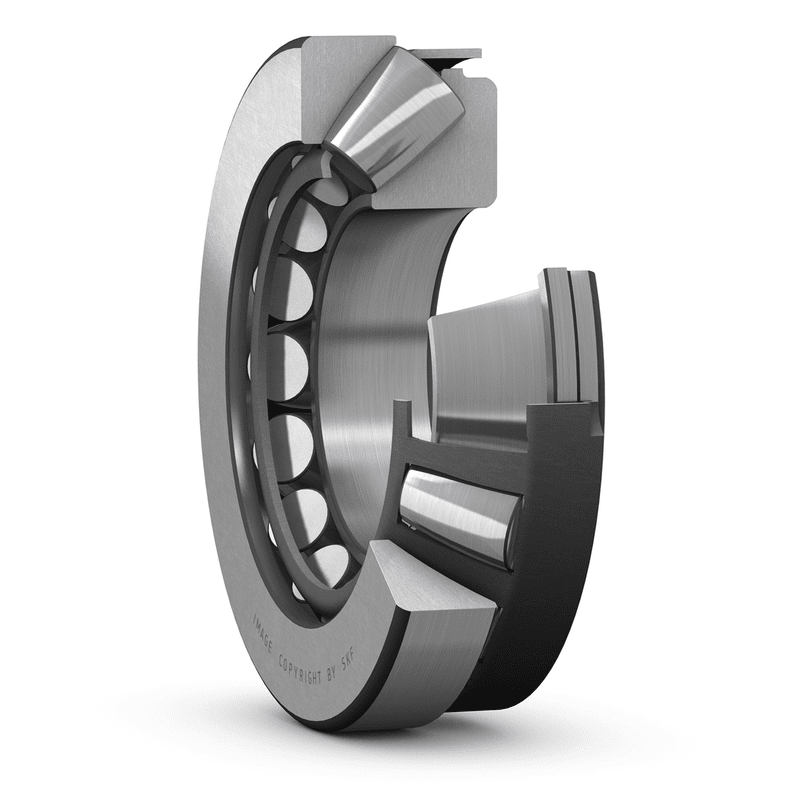

Spherical roller thrust bearings 29230E
SKU:BEA001417
Spherical roller thrust bearings 29230E
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
150 mm
|
|
|---|---|---|
| D |
215 mm
|
|
| H |
39 mm
|
|
| d1 |
≈ 200 mm
|
|
| D1 |
≈ 176 mm
|
|
| B |
24 mm
|
|
| B1 |
34.3 mm
|
|
| C |
20.5 mm
|
|
| s |
82 mm
|
|
| r1,2 |
min. 1.5 mm
|
ABUTMENT DIMENSIONS
| da |
min. 180 mm
|
|
|---|---|---|
| db1 |
max. 154 mm
|
|
| db2 |
max. 154 mm
|
|
| Ha |
min. 14 mm
|
|
| Da |
max. 193 mm
|
|
| ra |
max. 1.5 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
408 kN
|
|---|---|---|
| Basic static load rating | C0 |
1 600 kN
|
| Fatigue load limit | Pu |
180 kN
|
| Reference speed |
1 800 r/min
|
|
| Limiting speed |
2 800 r/min
|
|
| Minimum axial load factor | A |
0.24
|
MASS
| Mass bearing |
4.3 kg
|
|---|
