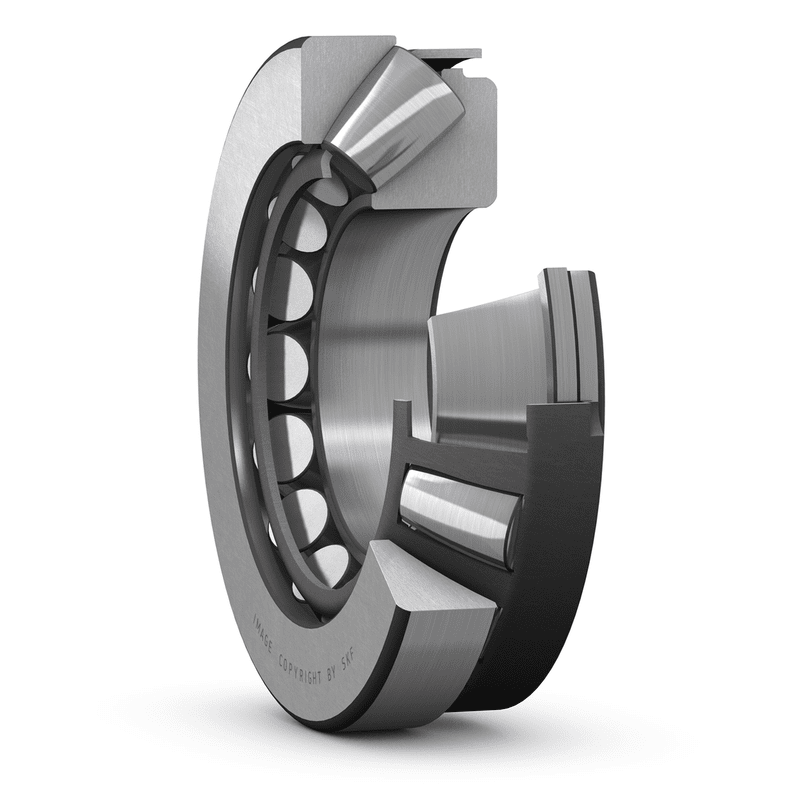

Spherical roller thrust bearings 29318E
SKU:SPH000127
Spherical roller thrust bearings 29318E
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
90 mm
|
|
|---|---|---|
| D |
155 mm
|
|
| H |
39 mm
|
|
| d1 |
≈ 138 mm
|
|
| D1 |
≈ 115 mm
|
|
| B |
24.5 mm
|
|
| B1 |
34.5 mm
|
|
| C |
19.5 mm
|
|
| s |
53 mm
|
|
| r1,2 |
min. 1.5 mm
|
ABUTMENT DIMENSIONS
| da |
min. 120 mm
|
|
|---|---|---|
| db1 |
max. 95 mm
|
|
| db2 |
max. 95 mm
|
|
| Da |
max. 134 mm
|
|
| ra |
max. 1.5 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
400 kN
|
|---|---|---|
| Basic static load rating | C0 |
1 080 kN
|
| Fatigue load limit | Pu |
132 kN
|
| Reference speed |
2 400 r/min
|
|
| Limiting speed |
4 000 r/min
|
|
| Minimum axial load factor | A |
0.11
|
MASS
| Mass bearing |
2.85 kg
|
|---|
