Combi Kit TMMK 10-35

SKU:MAI000007

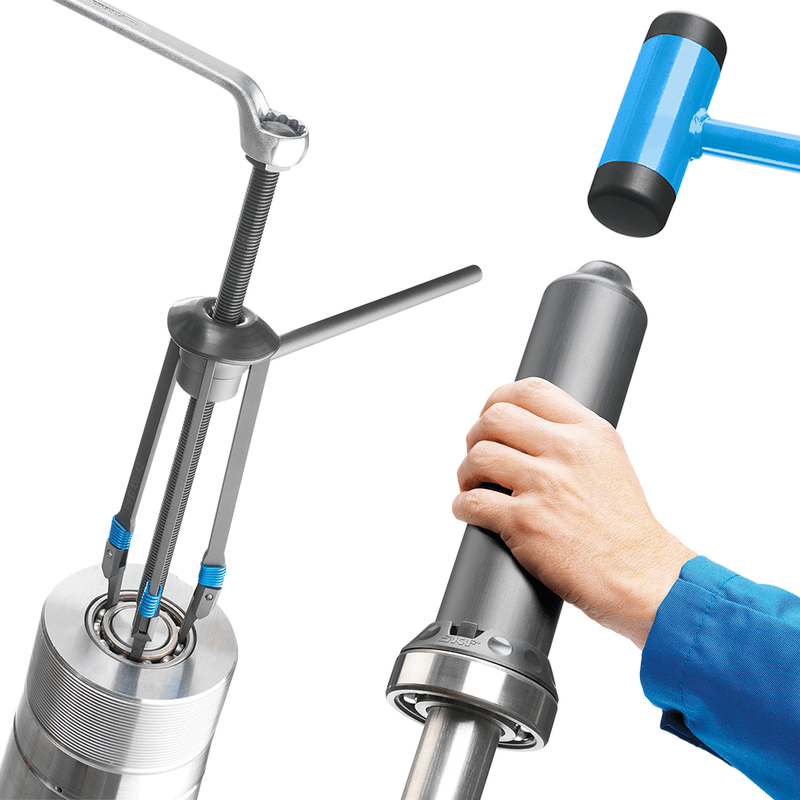

The SKF TMMK series is designed for the quick and precise mounting and dismounting of deep groove ball bearings from shafts, housings and blind housings. The TMMK 10-35 suits bearings with bore diameters from 10 to 35 mm, whereas the TMMK 20-50 suits bearings with bore diameters from 20 to 50 mm. For mounting, a multi-purpose fitting tool is included which is suitable for mounting bearings as well as bushings, seal rings, belt pulleys and other similar products. Multi-purpose fitting tools enable the mounting of a wide range of bearings and associated items. SKF deep groove ball bearings can be easily removed from blind housings and shafts, using a unique three-armed puller with a sliding hammer.
Call for price
Manufacturer : SKF

Description

Multi-purpose kits for quick and easy mounting and dismounting

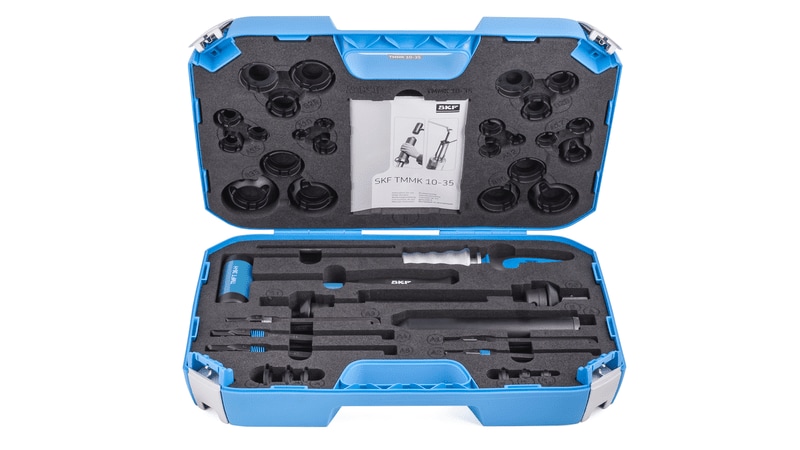

  • All parts are clearly arranged in the case for easy selection and identification
  • The correct combination of impact ring and sleeve helps ensure that mounting forces are not transmitted via the rolling elements of the bearing, minimizing damage to bearing due to incorrect mounting
  • The impact rings are made of high-impact modified polyamide. The impact sleeves are made of glass fibre-reinforced, high-impact modified polyamide, which is super-tough, strong and lightweight
  • The dead-blow hammer has nylon faces and is steel-shot loaded for maximum impact. The handle, with comfortable rubber-grip for good handling, absorbs shock and vibration
  • The claws are especially designed to facilitate a precise fit in the bearing’s raceways, providing good grip and allowing the application of higher dismounting forces
  • The designation is laser-engraved on the arms allowing easy identification and selection
  • The springs are colour-coded allowing easy selection and matching
  • Elastic locking ring results in easy connection of puller arms to spindle
  • Heavy sliding weight of the sliding hammer generates a high dismounting force
MEC0025V_NG3-16x9.png MEC0023V2_NG-TMFT-16x9.png

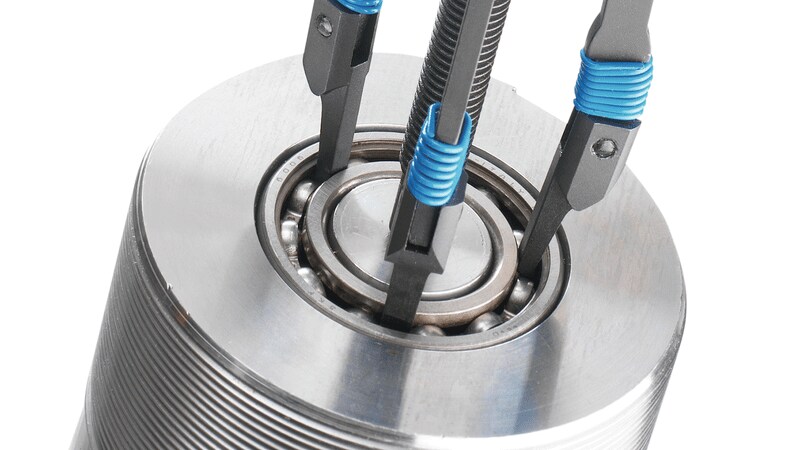

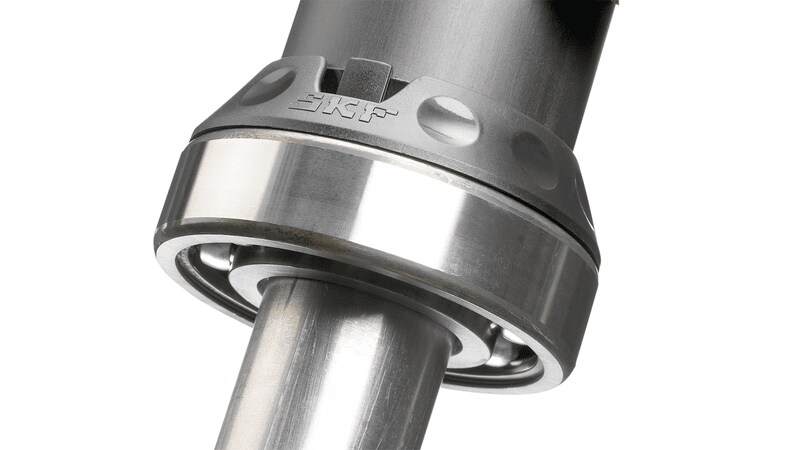

Combi kit - Dismounting Combi kit - Mounting
Related documents



TMMK 10-35 is suitable for the following SKF bearings

MOUNTING
Deep groove ball bearing Deep groove ball bearing (sealed) Self aligning ball bearing
6000-6007 62200-62207 1200-1207
6200-6207 62300-62307 129
6300-6307 63000-63007 1301-1307
6403-6407   2200-2207
629 Tapered roller bearing 2301-2307
62/22 30203-30207 11207
62/28 30302-30307
63/22 31305-31307 Spherical roller bearing
63/28 32004-32007 21305-21307
16002-16007 32205-32207 22205/20
16100-16101 32303-32307 22205-22207
98203-98206 33205-33207

Cylindrical roller bearing Single-row angular contact ball bearing CARB toroidal roller bearing
N 1005-N 1007 7000-7007 C 2205-C 2207
N 202-N 207 7200-7207 C 6006
N 2203-N 2207 7301-7307
N 2304-N 2307   Double-row angular contact ball bearing
N 3004-N 3007   3200-3207
N 303-N 307   3302-3307



DISMOUNTING
Deep groove ball bearing
60.. series 62.. series 63.. series 64.. series 16… series
6000–6017 6200–6211 6300–6307 6403 16002–16003
  62/22 63/22   16011
  62/28 63/28



TECHNICAL DATA
Designation TMMK 10–35
Number of impact rings 24
Number of sleeves 2
Impact rings bore diameter 10–35 mm (0.39–1.38 in.)
Impact rings outer diameter 26–80 mm (1.02–3.15 in.)
Dead-blow hammer TMFT 36-H
Dimensions of case 530 × 110 × 360 mm (20.9 × 4.3 × 14.2 in.)
Weight 7,6 kg (16.8 lb)



SPARE PARTS
Designation Description
TMMD 100-A1 Puller arm
TMMD 100-A2 Puller arm
TMMD 100-A3 Puller arm
TMMD 100-A4 Puller arm
TMMD 100-A5 Puller arm
TMMD 100-A6 Puller arm
TMFT 36 A Impact sleeve A
TMFT 36 B Impact sleeve B
TMFT 36 C Impact sleeve C
TMFT 36 A10-26 Impact ring size A10-26
TMFT 36 A10-30 Impact ring size A10-30
TMFT 36 A10-35 Impact ring size A10-35
TMFT 36 A12-28 Impact ring size A12-28
TMFT 36 A12-32 Impact ring size A12-32
TMFT 36 A12-37 Impact ring size A12-37
TMFT 36 A15-32 Impact ring size A15-32
TMFT 36 A15-35 Impact ring size A15-35
TMFT 36 A15-42 Impact ring size A15-42
TMFT 36 A17-35 Impact ring size A17-35
TMFT 36 A17-40 Impact ring size A17-40
TMFT 36 A17-47 Impact ring size A17-47
TMFT 36 B20-42 Impact ring size B20-42
TMFT 36 B20-47 Impact ring size B20-47
TMFT 36 B20-52 Impact ring size B20-52
TMFT 36 B25-47 Impact ring size B25-47
TMFT 36 B25-52 Impact ring size B25-52
TMFT 36 B25-62 Impact ring size B25-62
TMFT 36 B30-55 Impact ring size B30-55
TMFT 36 B30-62 Impact ring size B30-62
TMFT 36 B30-72 Impact ring size B30-72
TMFT 36 B35-62 Impact ring size B35-62
TMFT 36 B35-72 Impact ring size B35-72
TMFT 36 B35-80 Impact ring size B35-80
TMFT 36 C40-68 Impact ring size C40-68
TMFT 36 C40-80 Impact ring size C40-80
TMFT 36 C40-90 Impact ring size C40-90
TMFT 36 C45-10 Impact ring size C40-100
TMFT 36 C45-75 Impact ring size C45-75
TMFT 36 C45-85 Impact ring size C45-85
TMFT 36 C50-11 Impact ring size C50-110
TMFT 36 C50-80 Impact ring size C50-80
TMFT 36 C50-90 Impact ring size C50-90
TMFT 36-H Dead-blow hammer
TMMK 10-35-CC Toolcase with inlay for TMMK 10-35
TDTC 1/C Toolcase without inlay
