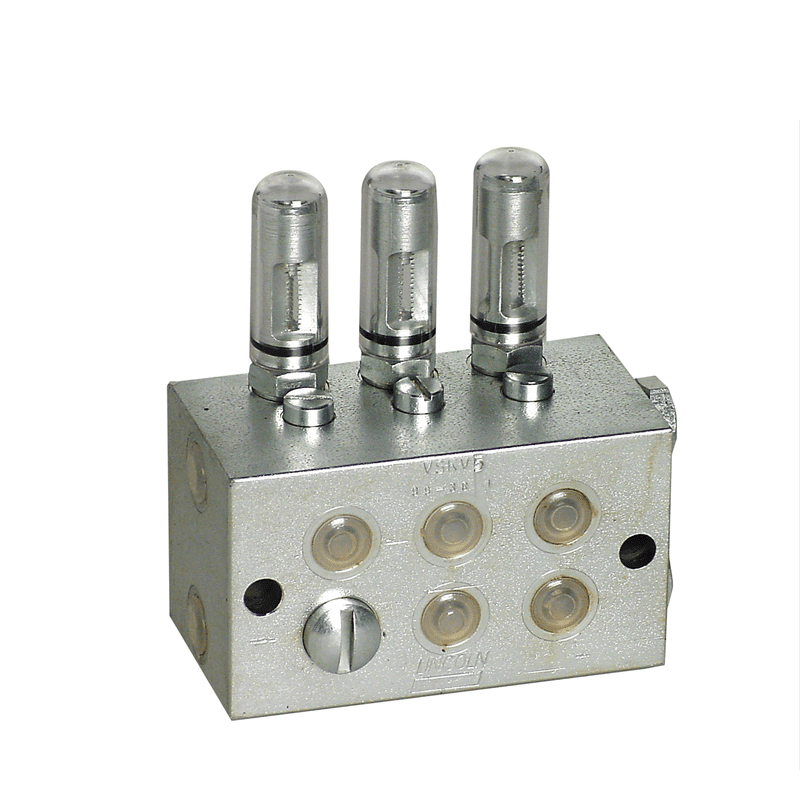

VSL8 620-40064-7

SKU:MET000008
VSL8 620-40064-7 The durable, galvanized steel VSL metering devices are designed for dual-line systems with pressures of up to 400 bar (5800 psi). These metering devices are available with up to eight outlets, and each pair of outlets is equipped with an indicator pin for visual monitoring. Also, the VSL metering devices are available with low-wear proximity switches, or piston detectors, for electrical monitoring. Additional features include rust-resistant material.
Call for price
Manufacturer : SKF

Description

For use in dual-line lubrication systems

TECHNICAL DATA
Function principle metering devices
Outlets 1-8
Lubricant Grease up to NLGI 3
  Oil with a viscosity minimum 20 mm²/s
Operating temperature
KR, KA, KD, D max. +80 °C +176 °F
MD, KR-FKM max. +120 °C +248 °F
Operating pressure max. 400 bar 5800 psi
Materials steel galvanized or stainless steel 1.4304/303 on request
Metering quantity
per outlet 0-5 cm³ 0-0.3 in3
fixed output version D 1.25; 2,5; 3,75; 5 cm³ 0.076; 0.15; 0.23; 0.31 in3
Main line connection inlet G 3/8, 3/8 NPTF
Outlet connection G 1/4, 1/4 NPTF
Dimensions
min 148 x 94 x 54 mm 5.83 x 3.70 x 2.13 in
max 148 x 220 x 54 mm 5.83 x 8.66 x 2.13 in



Order information

You can configure the product using the CAD configurator below. This will give you a specific order number.

VSL CARBON STEEL GALVANIZED
Part number Outlets Material Indication and monitoring
BSPP NPTF
620-40062-1 620-40062-2 1 Steel galvanized Indicator pin adjustable output KR
620-40062-3 620-40062-4 2 Steel galvanized Indicator pin adjustable output KR
620-40062-5 620-40062-6 3 Steel galvanized Indicator pin adjustable output KR
620-40062-7 620-40062-8 4 Steel galvanized Indicator pin adjustable output KR
620-40064-1 620-40064-2 5 Steel galvanized Indicator pin adjustable output KR
620-40064-3 620-40064-4 6 Steel galvanized Indicator pin adjustable output KR
620-40064-5 620-40064-6 7 Steel galvanized Indicator pin adjustable output KR
620-40064-7 620-40064-8 8 Steel galvanized Indicator pin adjustable output KR

620-40527-1 - 1 Steel galvanized Indicator pin adjustable output KR; FKM U-cup seal
620-40526-1 620-40937-2 2 Steel galvanized Indicator pin adjustable output KR; FKM U-cup seal
620-40526-9 - 3 Steel galvanized Indicator pin adjustable output KR; FKM U-cup seal
620-40526-4 620-40937-4 4 Steel galvanized Indicator pin adjustable output KR; FKM U-cup seal
620-40526-5 - 5 Steel galvanized Indicator pin adjustable output KR; FKM U-cup seal
620-40526-6 620-40937-6 6 Steel galvanized Indicator pin adjustable output KR; FKM U-cup seal
620-40526-7 - 7 Steel galvanized Indicator pin adjustable output KR; FKM U-cup seal
620-40526-8 620-40937-8 8 Steel galvanized Indicator pin adjustable output KR; FKM U-cup seal

620-40853-1 - 1 Steel galvanized Indicator pin adjustable output KR; Piston detector NP
620-40853-2 - 2 Steel galvanized Indicator pin adjustable output KR; Piston detector NP
620-40853-3 - 3 Steel galvanized Indicator pin adjustable output KR; Piston detector NP
620-40853-4 - 4 Steel galvanized Indicator pin adjustable output KR; Piston detector NP
620-40853-5 - 5 Steel galvanized Indicator pin adjustable output KR; Piston detector NP
620-40853-6 - 6 Steel galvanized Indicator pin adjustable output KR; Piston detector NP
620-40853-7 - 7 Steel galvanized Indicator pin adjustable output KR; Piston detector NP
620-40853-8 - 8 Steel galvanized Indicator pin adjustable output KR; Piston detector NP

620-40637-2 - 2 Steel galvanized Indicator pin adjustable output KR; Adapter for limit switch KA
620-40637-4 - 4 Steel galvanized Indicator pin adjustable output KR; Adapter for limit switch KA
620-40637-6 - 6 Steel galvanized Indicator pin adjustable output KR; Adapter for limit switch KA
620-40637-8 - 8 Steel galvanized Indicator pin adjustable output KR; Adapter for limit switch KA

620-40068-1 620-40068-2 1 Steel galvanized Indicator pin adjustable output KR; Limit switch KS
620-40068-3 620-40068-4 2 Steel galvanized Indicator pin adjustable output KR; Limit switch KS
620-40068-5 620-40068-6 3 Steel galvanized Indicator pin adjustable output KR; Limit switch KS
620-40068-7 620-40068-8 4 Steel galvanized Indicator pin adjustable output KR; Limit switch KS
620-40069-1 620-40069-2 5 Steel galvanized Indicator pin adjustable output KR; Limit switch KS
620-40069-3 620-40069-4 6 Steel galvanized Indicator pin adjustable output KR; Limit switch KS
620-40069-5 620-40069-6 7 Steel galvanized Indicator pin adjustable output KR; Limit switch KS
620-40069-7 620-40069-8 8 Steel galvanized Indicator pin adjustable output KR; Limit switch KS



VSL CARBON STEEL GALVANIZED
Part number Outlets Material Indication and monitoring
BSPP NPTF
620-40065-1 620-40065-2 1 Carbon steel galvanized Indicator pin; fixed output; metering screw KD
620-40065-3 620-40065-4 2 Carbon steel galvanized Indicator pin; fixed output; metering screw KD
620-40065-5 620-40065-6 3 Carbon steel galvanized Indicator pin; fixed output; metering screw KD
620-40065-7 620-40065-8 4 Carbon steel galvanized Indicator pin; fixed output; metering screw KD
620-40066-1 620-40066-2 5 Carbon steel galvanized Indicator pin; fixed output; metering screw KD
620-40066-3 620-40066-4 6 Carbon steel galvanized Indicator pin; fixed output; metering screw KD
620-40066-5 620-40066-6 7 Carbon steel galvanized Indicator pin; fixed output; metering screw KD
620-40066-7 620-40066-8 8 Carbon steel galvanized Indicator pin; fixed output; metering screw KD

620-40063-1 620-40063-2 1 Carbon steel galvanized Metering screw D
620-40063-3 620-40063-4 2 Carbon steel galvanized Metering screw D
620-40063-5 620-40063-6 3 Carbon steel galvanized Metering screw D
620-40063-7 620-40063-8 4 Carbon steel galvanized Metering screw D
620-40067-1 620-40067-2 5 Carbon steel galvanized Metering screw D
620-40067-3 620-40067-4 6 Carbon steel galvanized Metering screw D
620-40067-5 620-40067-6 7 Carbon steel galvanized Metering screw D
620-40067-7 620-40067-8 8 Carbon steel galvanized Metering screw D



VSL–MD.. , WITH CONNECTION THREAD BSPP
Part number Outlets Material
  Metering device Regulating sleeve Protection cap
620-41125-1 1 steel, galvanized brass brass
620-41079-6 1 steel, galvanized brass plastic
620-41079-2 2 steel, galvanized brass brass
620-41125-2 2 steel, galvanized brass plastic
620-41125-3 3 steel, galvanized brass brass
620-41079-7  3 steel, galvanized brass plastic
620-41079-4 4 steel, galvanized brass brass
620-41125-4 4 steel, galvanized brass plastic
620-41125-5 5 steel, galvanized brass brass
620-41079-8 5 steel, galvanized brass plastic
620-41079-5 6 steel, galvanized brass brass
620-41125-6 6 steel, galvanized brass plastic
620-41125-7 7 steel, galvanized brass brass
620-41079-9 7 steel, galvanized brass plastic
620-41079-3 8 steel, galvanized brass brass
620-41125-8 8 steel, galvanized brass plastic
