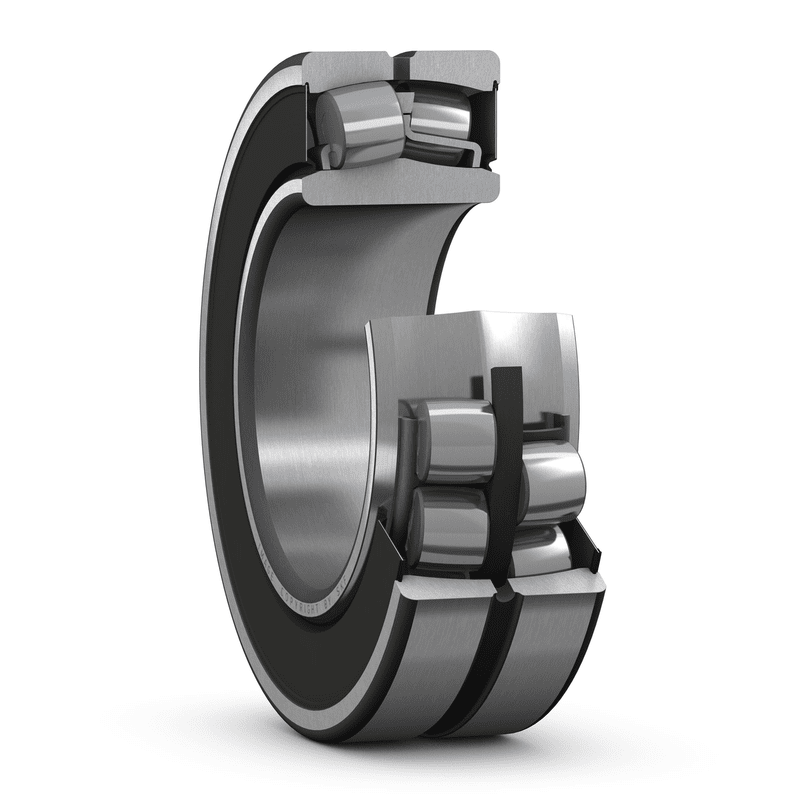

Spherical roller bearings BS222152RSK/VT143
SKU:SRB000029
Spherical roller bearings BS222152RSK/VT143
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
75 mm
|
|
|---|---|---|
| D |
130 mm
|
|
| B |
38 mm
|
|
| d2 |
≈ 84.5 mm
|
|
| D1 |
≈ 120 mm
|
|
| b |
6 mm
|
|
| K |
3 mm
|
|
| r1,2 |
min. 1.5 mm
|
|
|
Tapered bore, taper 1:12
|
ABUTMENT DIMENSIONS
| Da |
max. 121 mm
|
|
|---|---|---|
| ra |
max. 1.5 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
217 kN
|
|---|---|---|
| Basic static load rating | C0 |
240 kN
|
| Fatigue load limit | Pu |
26.5 kN
|
| Limiting speed |
2 200 r/min
|
|
| Calculation factor | e |
0.22
|
| Calculation factor | Y1 |
3
|
| Calculation factor | Y2 |
4.6
|
| Calculation factor | Y0 |
2.8
|
MASS
| Mass bearing |
2.1 kg
|
|---|
MOUNTING INFORMATION
| Recommended lock nut tightening angle | α |
130 °
|
|---|
