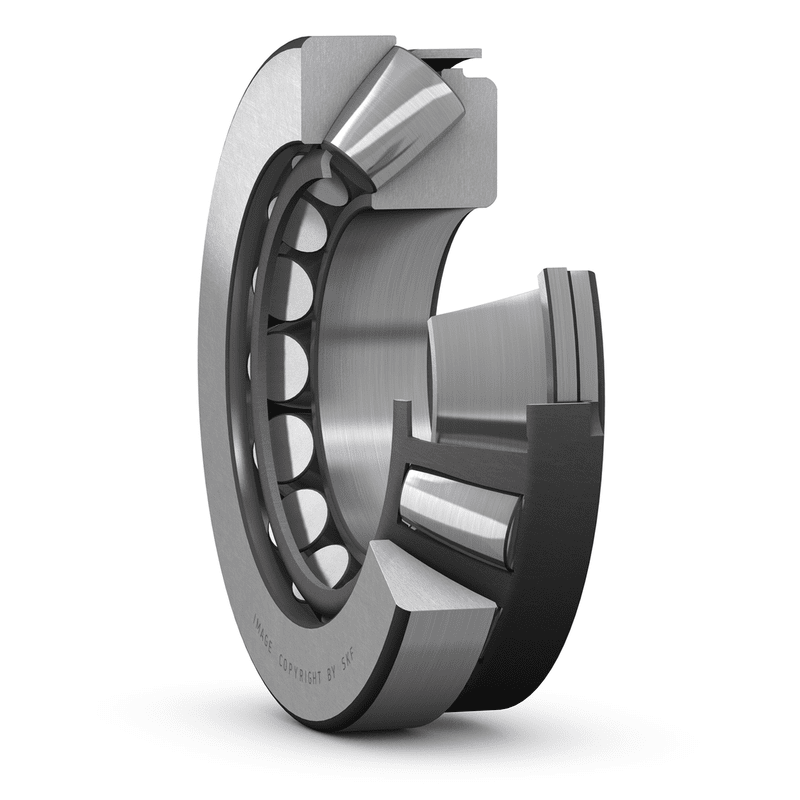

Spherical roller thrust bearings 29322E
SKU:SRT000001
Spherical roller thrust bearings 29322E
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
110 mm
|
|
|---|---|---|
| D |
190 mm
|
|
| H |
48 mm
|
|
| d1 |
≈ 171 mm
|
|
| D1 |
≈ 140 mm
|
|
| B |
30.3 mm
|
|
| B1 |
41.7 mm
|
|
| C |
24.8 mm
|
|
| s |
63.8 mm
|
|
| r1,2 |
min. 2 mm
|
ABUTMENT DIMENSIONS
| da |
min. 145 mm
|
|
|---|---|---|
| db1 |
max. 117 mm
|
|
| db2 |
max. 117 mm
|
|
| Da |
max. 164 mm
|
|
| ra |
max. 2 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
610 kN
|
|---|---|---|
| Basic static load rating | C0 |
1 730 kN
|
| Fatigue load limit | Pu |
204 kN
|
| Reference speed |
1 900 r/min
|
|
| Limiting speed |
3 200 r/min
|
|
| Minimum axial load factor | A |
0.28
|
MASS
| Mass bearing |
5.3 kg
|
|---|
