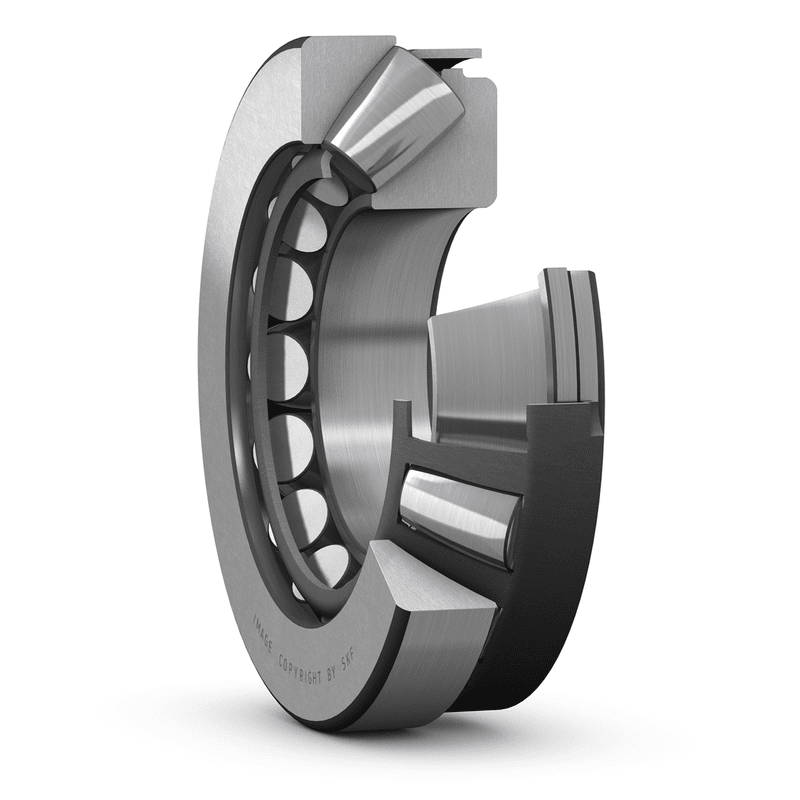

Spherical roller thrust bearings 29328E
SKU:SRT000003
Spherical roller thrust bearings 29328E
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
140 mm
|
|
|---|---|---|
| D |
240 mm
|
|
| H |
60 mm
|
|
| d1 |
≈ 216 mm
|
|
| D1 |
≈ 177 mm
|
|
| B |
38.5 mm
|
|
| B1 |
54 mm
|
|
| C |
30 mm
|
|
| s |
82 mm
|
|
| r1,2 |
min. 2.1 mm
|
ABUTMENT DIMENSIONS
| da |
min. 185 mm
|
|
|---|---|---|
| db1 |
max. 148 mm
|
|
| db2 |
max. 154 mm
|
|
| Da |
max. 208 mm
|
|
| ra |
max. 2 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
980 kN
|
|---|---|---|
| Basic static load rating | C0 |
2 850 kN
|
| Fatigue load limit | Pu |
315 kN
|
| Reference speed |
1 500 r/min
|
|
| Limiting speed |
2 600 r/min
|
|
| Minimum axial load factor | A |
0.77
|
MASS
| Mass bearing |
10.5 kg
|
|---|
