| Optimised puller claw design Firmly grips the outer raceway of SKF bearings without the need of removing the bearing cage. |
Rubber cap Allows easy and quick attachment of the arms to the spindle. It also prevents the puller arms from detaching from the spindle during operation. |
Carrying case Supplied in a sturdy carrying case |
Deep groove ball bearing puller kit TMMD100
SKU:MAI000011

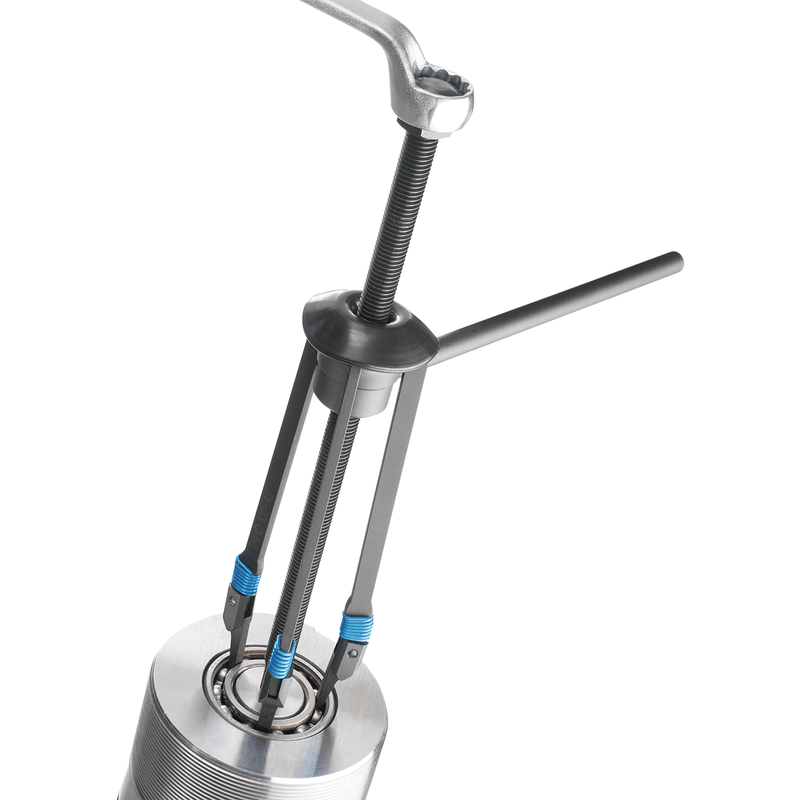

Easy dismounting of bearings in blind housings
The puller is suitable for use in both blind housings and shaft applications. The SKF TMMD 100 is suitable for dismounting up to 71 different SKF deep groove ball bearings, with shaft diameters ranging between 10 and 100 mm (0.4–3.9 in.).
Manufacturer : SKF
Description
Deep groove ball bearing puller kit
Easy dismounting of bearings in blind housings
The puller is suitable for use in both blind housings and shaft applications. The SKF TMMD 100 is suitable for dismounting up to 71 different SKF deep groove ball bearings, with shaft diameters ranging between 10 and 100 mm (0.4–3.9 in.).
- The claws are designed to precisely fit in the bearing’s raceway, providing a good grip, thereby allowing high dismounting forces
- Each puller arm is fitted with a spring for easy installation
- The claw has been designed to allow easy insertion
- The hexagon head of the spindle is designed to prevent the spanner sliding down the spindle during dismounting
- The puller can also be used to remove sealed bearings from blind housings, after the seal has been removed
- Supplied in a sturdy carrying case
| Bearing designation | Shaft diameter | |
| 6000–6020 | 10–100 mm | (0.4–3.9 in.) |
| 6200–6218 | 10–90 mm | (0.4–3.5 in.) |
| 6300–6313 | 10–65 mm | (0.4–2.6 in.) |
| 6403–6410 | 17–50 mm | (0.7–2.0 in.) |
| 62/22, 62/28 | 22, 28, 22, 28 mm | (0.9, 1.1, 0.9, 1.1 in.) |
| 63/22, 63/28 | ||
| 16002, 16003, 16011 | 15, 17, 55 mm | (0.6, 0.7, 2.2 in.) |
| 16100, 16101 | 10, 12 mm | (0.4, 0.5 in.) |
| Designation |
TMMD 100 |
| Kit contents | 3 x puller arm A1–135 mm (5.3 in.) |
| 3 x puller arm A2–135 mm (5.3 in.) | |
| 3 x puller arm A3–137 mm (5.4 in.) | |
| 3 x puller arm A4–162 mm (6.4 in.) | |
| 3 x puller arm A5–167 mm (6.6 in.) | |
| 3 x puller arm A6–170 mm (6.7 in.) | |
| 2 x spindle and nut | |
| 1 x handle | |
| Effective arm length | 135–170 mm (5.3–5.7 in.) |
| Dimensions of case | 530 x 85 x 180 mm (20.9 x 3.4 x 7.0 in.) |
| Weight | 3,6 kg (7.9 lb) |
| Designation | Description |
| TMMD 100-A1 | 1 x Puller arm |
| TMMD 100-A2 | 1 x Puller arm |
| TMMD 100-A3 | 1 x Puller arm |
| TMMD 100-A4 | 1 x Puller arm |
| TMMD 100-A5 | 1 x Puller arm |
| TMMD 100-A6 | 1 x Puller arm |
| TMMD 100-S1 | Spindle, nut and handle |
| TMMD 100-S2 | Spindle, nut and handle |
| TMMD 100-CX | Toolcase with inlay for TMMD 100 |
| TDTC 1/X | Toolcase without inlay |
