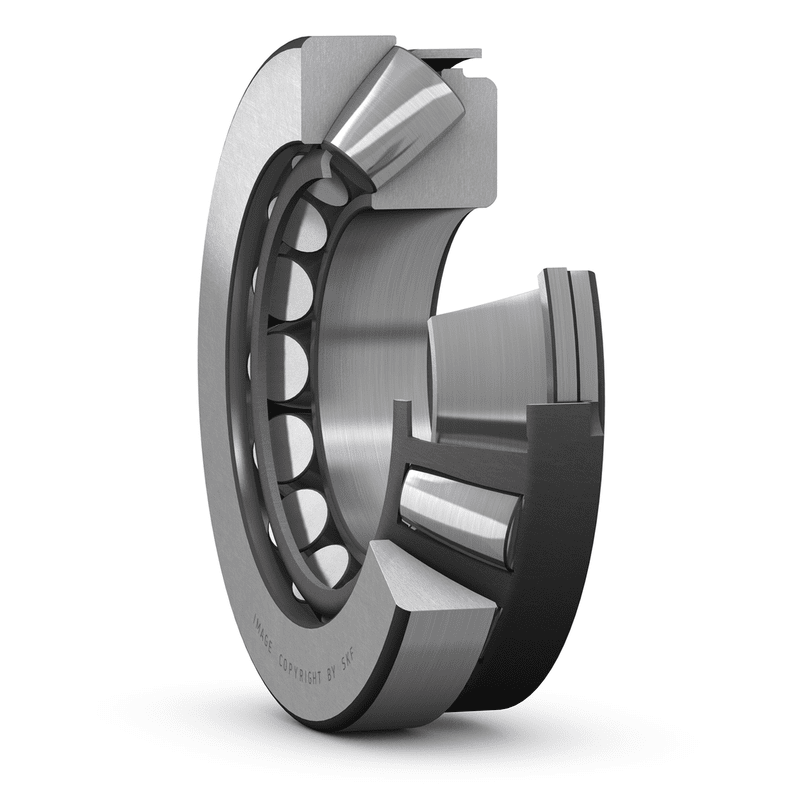

Spherical roller thrust bearings 29330E
SKU:SRT000007
Spherical roller thrust bearings 29330E
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
150 mm
|
|
|---|---|---|
| D |
250 mm
|
|
| H |
60 mm
|
|
| d1 |
≈ 223 mm
|
|
| D1 |
≈ 190 mm
|
|
| B |
38 mm
|
|
| B1 |
54.9 mm
|
|
| C |
28 mm
|
|
| s |
87 mm
|
|
| r1,2 |
min. 2.1 mm
|
ABUTMENT DIMENSIONS
| da |
min. 195 mm
|
|
|---|---|---|
| db1 |
max. 158 mm
|
|
| db2 |
max. 163 mm
|
|
| Da |
max. 219 mm
|
|
| ra |
max. 2 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
1 000 kN
|
|---|---|---|
| Basic static load rating | C0 |
2 850 kN
|
| Fatigue load limit | Pu |
315 kN
|
| Reference speed |
1 500 r/min
|
|
| Limiting speed |
2 400 r/min
|
|
| Minimum axial load factor | A |
0.77
|
MASS
| Mass bearing |
11 kg
|
|---|
