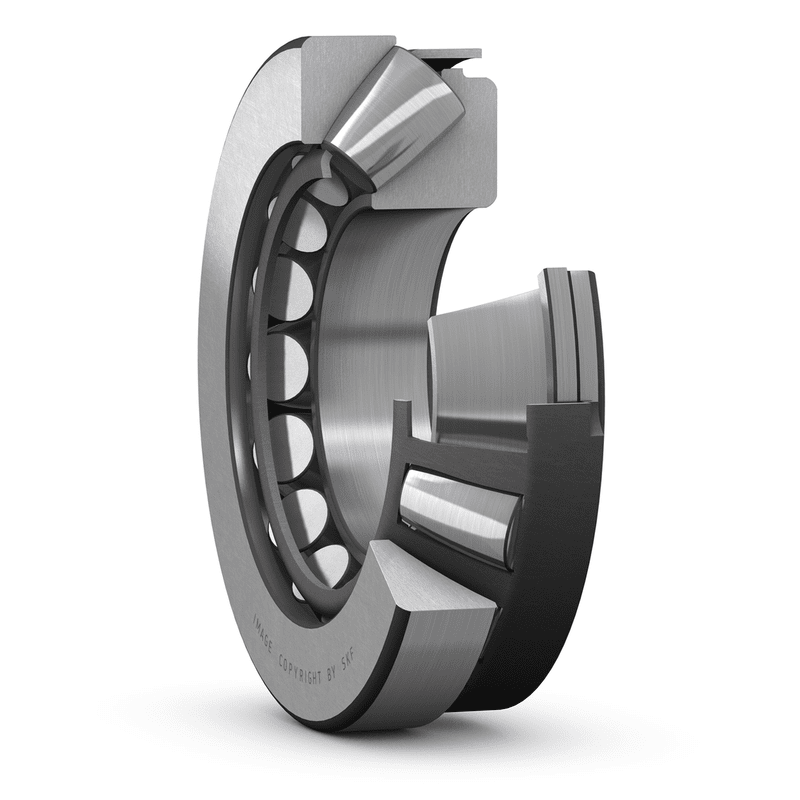

Spherical roller thrust bearings 29332E
SKU:SRT000009
Spherical roller thrust bearings 29332E
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
160 mm
|
|
|---|---|---|
| D |
270 mm
|
|
| H |
67 mm
|
|
| d1 |
≈ 243 mm
|
|
| D1 |
≈ 203 mm
|
|
| B |
42 mm
|
|
| B1 |
60 mm
|
|
| C |
33 mm
|
|
| s |
92 mm
|
|
| r1,2 |
min. 3 mm
|
ABUTMENT DIMENSIONS
| da |
min. 210 mm
|
|
|---|---|---|
| db1 |
max. 169 mm
|
|
| db2 |
max. 176 mm
|
|
| Da |
max. 235 mm
|
|
| ra |
max. 2.5 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
1 180 kN
|
|---|---|---|
| Basic static load rating | C0 |
3 450 kN
|
| Fatigue load limit | Pu |
375 kN
|
| Reference speed |
1 300 r/min
|
|
| Limiting speed |
2 200 r/min
|
|
| Minimum axial load factor | A |
1.1
|
MASS
| Mass bearing |
14.5 kg
|
|---|
