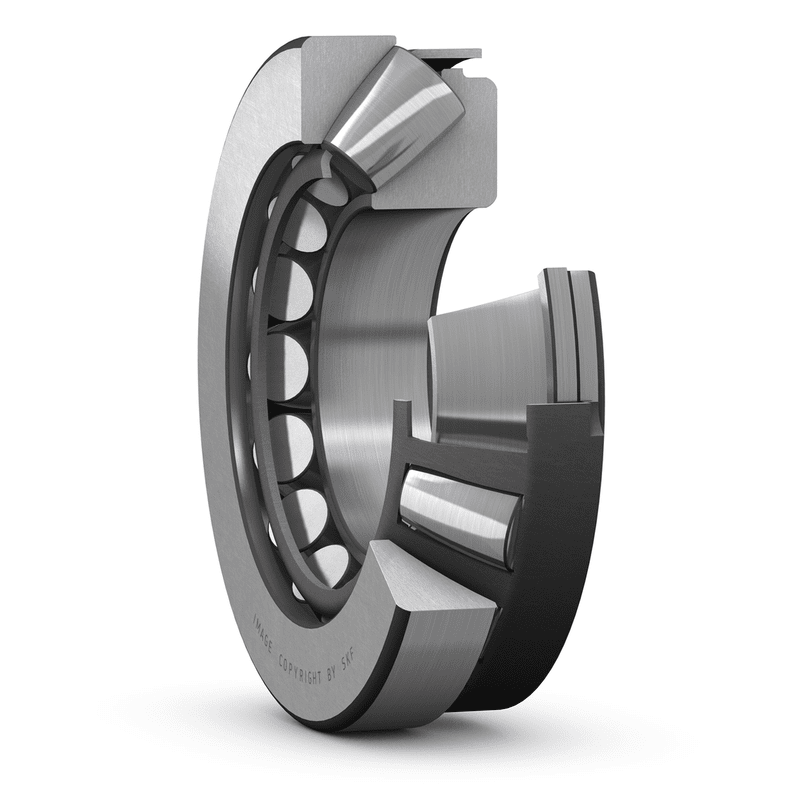

Spherical roller thrust bearings 29344E
SKU:SRT000006
Spherical roller thrust bearings 29344E
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
220 mm
|
|
|---|---|---|
| D |
360 mm
|
|
| H |
85 mm
|
|
| d1 |
≈ 326 mm
|
|
| D1 |
≈ 274 mm
|
|
| B |
55 mm
|
|
| B1 |
77.7 mm
|
|
| C |
41 mm
|
|
| s |
125 mm
|
|
| r1,2 |
min. 4 mm
|
ABUTMENT DIMENSIONS
| da |
min. 285 mm
|
|
|---|---|---|
| db1 |
max. 229 mm
|
|
| db2 |
max. 240 mm
|
|
| Da |
max. 316 mm
|
|
| ra |
max. 3 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
2 000 kN
|
|---|---|---|
| Basic static load rating | C0 |
6 300 kN
|
| Fatigue load limit | Pu |
610 kN
|
| Reference speed |
1 000 r/min
|
|
| Limiting speed |
1 700 r/min
|
|
| Minimum axial load factor | A |
3.8
|
MASS
| Mass bearing |
31.2 kg
|
|---|
