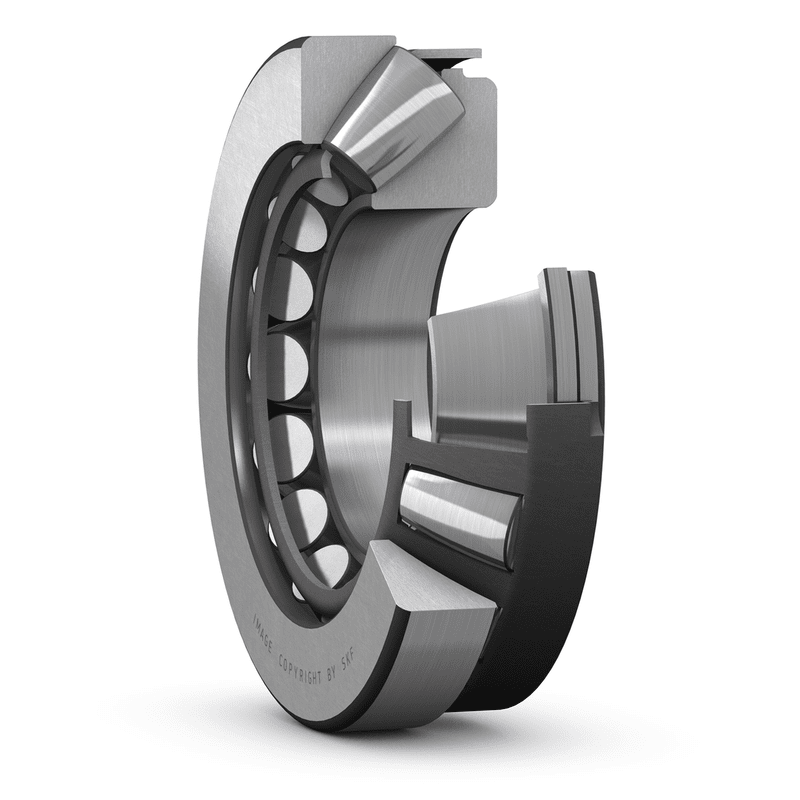

Spherical roller thrust bearings 29414E
SKU:SPH000129
Spherical roller thrust bearings 29414E
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
70 mm
|
|
|---|---|---|
| D |
150 mm
|
|
| H |
48 mm
|
|
| d1 |
≈ 129 mm
|
|
| D1 |
≈ 99 mm
|
|
| B |
31 mm
|
|
| B1 |
41 mm
|
|
| C |
23.8 mm
|
|
| s |
44.8 mm
|
|
| r1,2 |
min. 2 mm
|
ABUTMENT DIMENSIONS
| da |
min. 105 mm
|
|
|---|---|---|
| db1 |
max. 77.5 mm
|
|
| db2 |
max. 77.5 mm
|
|
| Da |
max. 125 mm
|
|
| ra |
max. 2 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
520 kN
|
|---|---|---|
| Basic static load rating | C0 |
1 250 kN
|
| Fatigue load limit | Pu |
153 kN
|
| Reference speed |
2 400 r/min
|
|
| Limiting speed |
4 300 r/min
|
|
| Minimum axial load factor | A |
0.15
|
MASS
| Mass bearing |
3.9 kg
|
|---|
