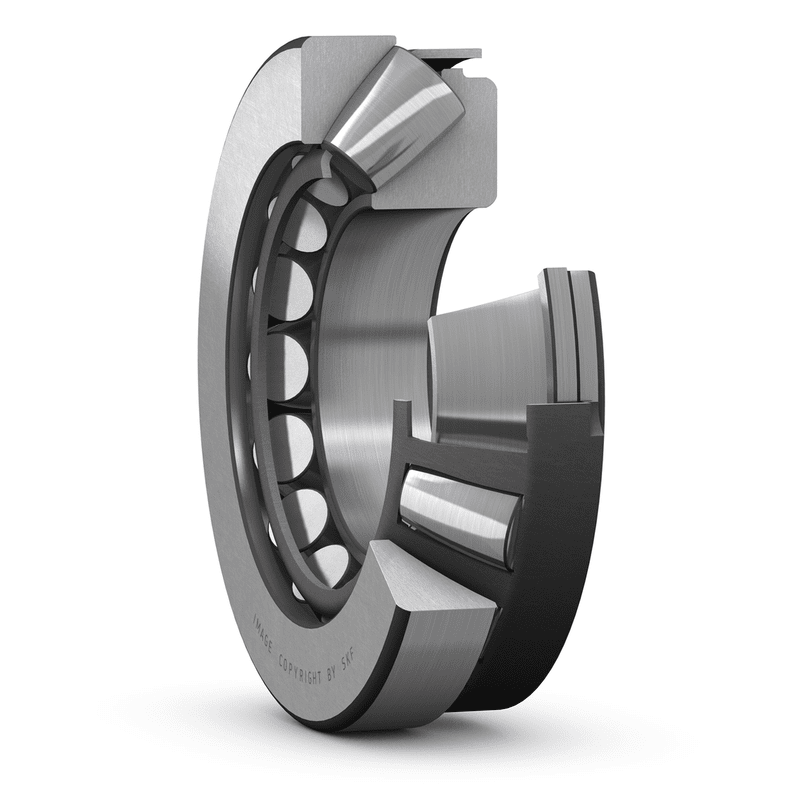

Spherical roller thrust bearings 29418E
SKU:SRB000045
Spherical roller thrust bearings 29418E
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
90 mm
|
|
|---|---|---|
| D |
190 mm
|
|
| H |
60 mm
|
|
| d1 |
≈ 164 mm
|
|
| D1 |
≈ 128 mm
|
|
| B |
39 mm
|
|
| B1 |
54 mm
|
|
| C |
28.5 mm
|
|
| s |
56 mm
|
|
| r1,2 |
min. 2.1 mm
|
ABUTMENT DIMENSIONS
| da |
min. 135 mm
|
|
|---|---|---|
| db1 |
max. 99 mm
|
|
| db2 |
max. 99 mm
|
|
| Da |
max. 158 mm
|
|
| ra |
max. 2 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
815 kN
|
|---|---|---|
| Basic static load rating | C0 |
2 000 kN
|
| Fatigue load limit | Pu |
232 kN
|
| Reference speed |
1 900 r/min
|
|
| Limiting speed |
3 400 r/min
|
|
| Minimum axial load factor | A |
0.38
|
MASS
| Mass bearing |
7.75 kg
|
|---|
