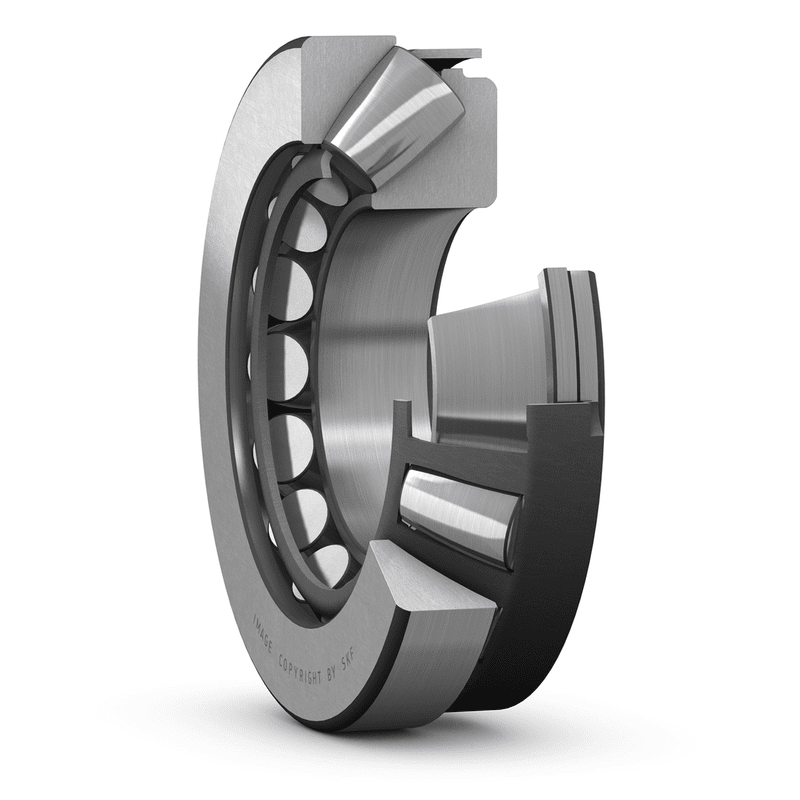

Spherical roller thrust bearings 29420E
SKU:SPH000175
Spherical roller thrust bearings 29420E
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
100 mm
|
|
|---|---|---|
| D |
210 mm
|
|
| H |
67 mm
|
|
| d1 |
≈ 182 mm
|
|
| D1 |
≈ 142 mm
|
|
| B |
43 mm
|
|
| B1 |
57.3 mm
|
|
| C |
32 mm
|
|
| s |
62 mm
|
|
| r1,2 |
min. 3 mm
|
ABUTMENT DIMENSIONS
| da |
min. 150 mm
|
|
|---|---|---|
| db1 |
max. 110 mm
|
|
| db2 |
max. 110 mm
|
|
| Da |
max. 175 mm
|
|
| ra |
max. 2.5 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
980 kN
|
|---|---|---|
| Basic static load rating | C0 |
2 500 kN
|
| Fatigue load limit | Pu |
275 kN
|
| Reference speed |
1 700 r/min
|
|
| Limiting speed |
3 000 r/min
|
|
| Minimum axial load factor | A |
0.59
|
MASS
| Mass bearing |
10.5 kg
|
|---|
