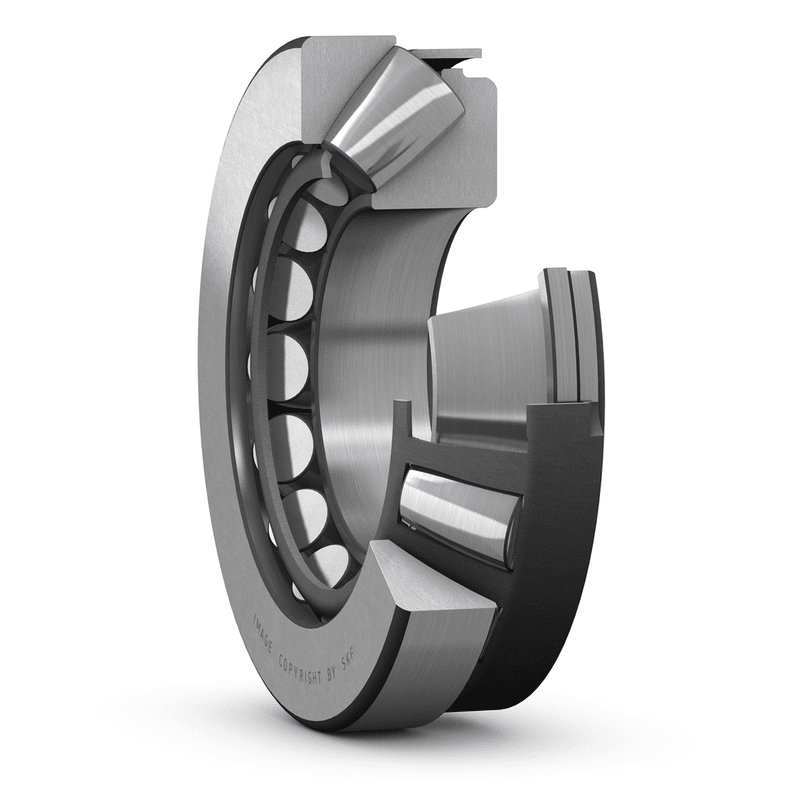

Spherical roller thrust bearings 29432E
SKU:SRT000004
Spherical roller thrust bearings 29432E
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
160 mm
|
|
|---|---|---|
| D |
320 mm
|
|
| H |
95 mm
|
|
| d1 |
≈ 279 mm
|
|
| D1 |
≈ 224 mm
|
|
| B |
60.5 mm
|
|
| B1 |
84.3 mm
|
|
| C |
45.5 mm
|
|
| s |
99 mm
|
|
| r1,2 |
min. 5 mm
|
ABUTMENT DIMENSIONS
| da |
min. 235 mm
|
|
|---|---|---|
| db1 |
max. 175 mm
|
|
| db2 |
max. 189 mm
|
|
| Da |
max. 270 mm
|
|
| ra |
max. 4 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
2 080 kN
|
|---|---|---|
| Basic static load rating | C0 |
5 600 kN
|
| Fatigue load limit | Pu |
570 kN
|
| Reference speed |
1 100 r/min
|
|
| Limiting speed |
2 000 r/min
|
|
| Minimum axial load factor | A |
3
|
MASS
| Mass bearing |
32 kg
|
|---|
