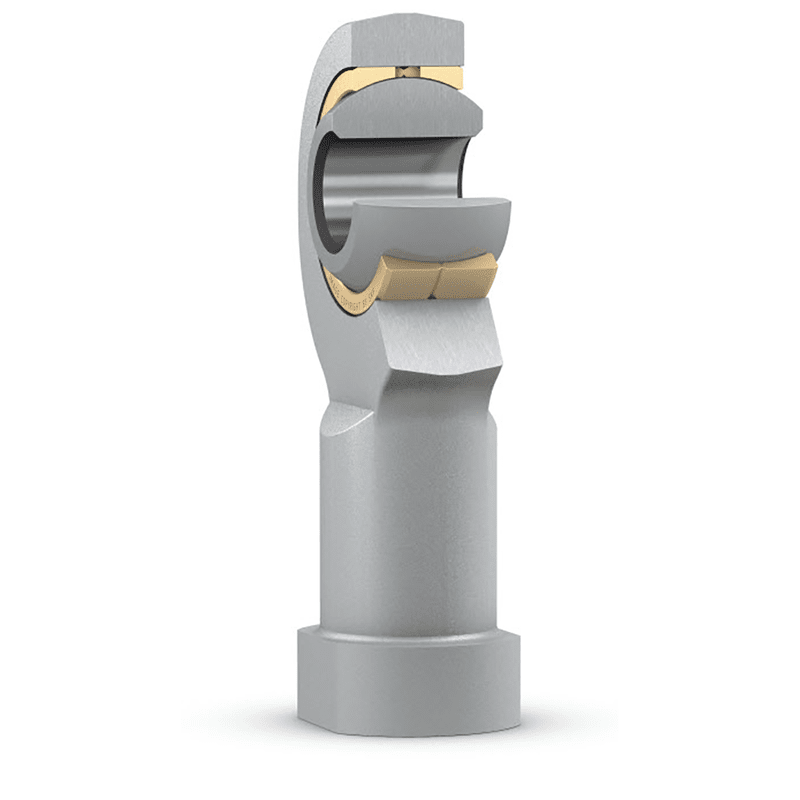

Rod ends with a female thread SIKAC12M
SKU:ROD000004
Rod ends with a female thread SIKAC12M
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
12 mm
|
|
|---|---|---|
| d2 |
max. 33 mm
|
|
| B |
16 mm
|
|
| G |
M 12
|
|
| C1 |
max. 12.5 mm
|
|
| h1 |
50 mm
|
|
| α |
13 °
|
|
| dk |
22.225 mm
|
|
| d3 |
≈ 17.5 mm
|
|
| d4 |
max. 23 mm
|
|
| l3 |
min. 18 mm
|
|
| l4 |
max. 67 mm
|
|
| l5 |
≈ 6.5 mm
|
|
| l7 |
min. 16 mm
|
|
| w |
19 mm
|
|
| r1 |
min. 0.3 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
12.2 kN
|
|---|---|---|
| Basic static load rating | C0 |
14 kN
|
| Specific dynamic load factor | K |
50 N/mm²
|
| Material constant | KM |
330
|
MASS
| Mass rod end |
0.11 kg
|
|---|
