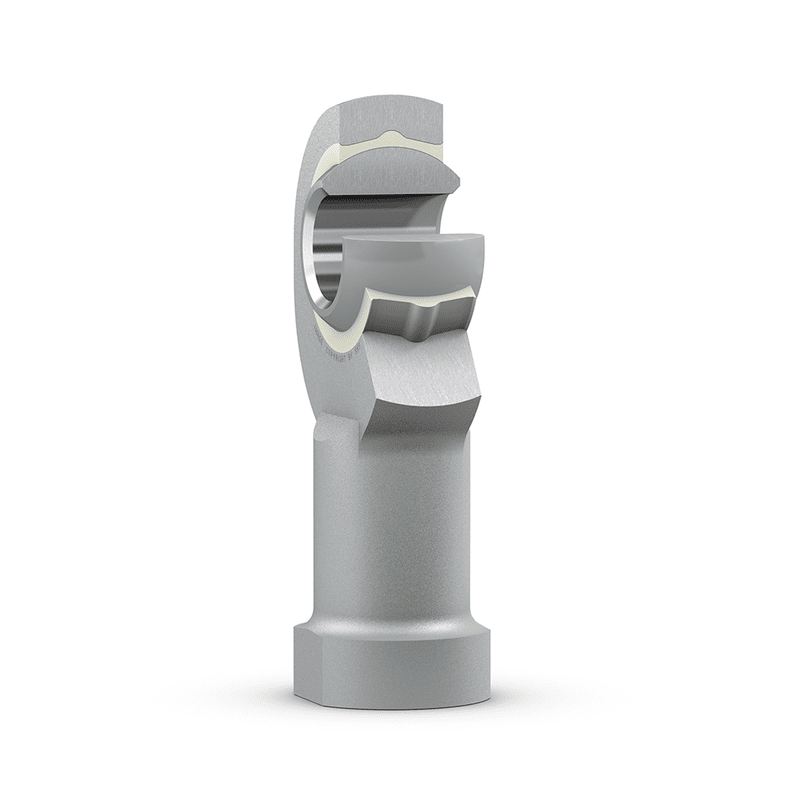

Rod ends with a female thread SIKB16F/VZ019
SKU:ROD000001
Rod ends with a female thread SIKB16F/VZ019
Manufacturer : SKF
Description
Technical specification
DIMENSIONS
| d |
16 mm
|
|
|---|---|---|
| d2 |
max. 43 mm
|
|
| B |
21 mm
|
|
| G |
M 16x1.5
|
|
| C1 |
max. 15.5 mm
|
|
| h1 |
64 mm
|
|
| α |
15 °
|
|
| dk |
28.575 mm
|
|
| d3 |
≈ 22 mm
|
|
| d4 |
max. 29 mm
|
|
| l3 |
min. 28 mm
|
|
| l4 |
max. 87 mm
|
|
| l5 |
≈ 8 mm
|
|
| l7 |
min. 21 mm
|
|
| w |
22 mm
|
|
| r1 |
min. 0.3 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
21.4 kN
|
|---|---|---|
| Basic static load rating | C0 |
34.5 kN
|
| Specific dynamic load factor | K |
50 N/mm²
|
| Material constant | KM |
530
|
MASS
| Mass rod end |
0.23 kg
|
|---|
