Oil Seal 110x160x12 CRWH1R
SKU:OIL000581
Oil Seal 110x160x12 CRWH1R
Radial shaft seals for general industrial applications

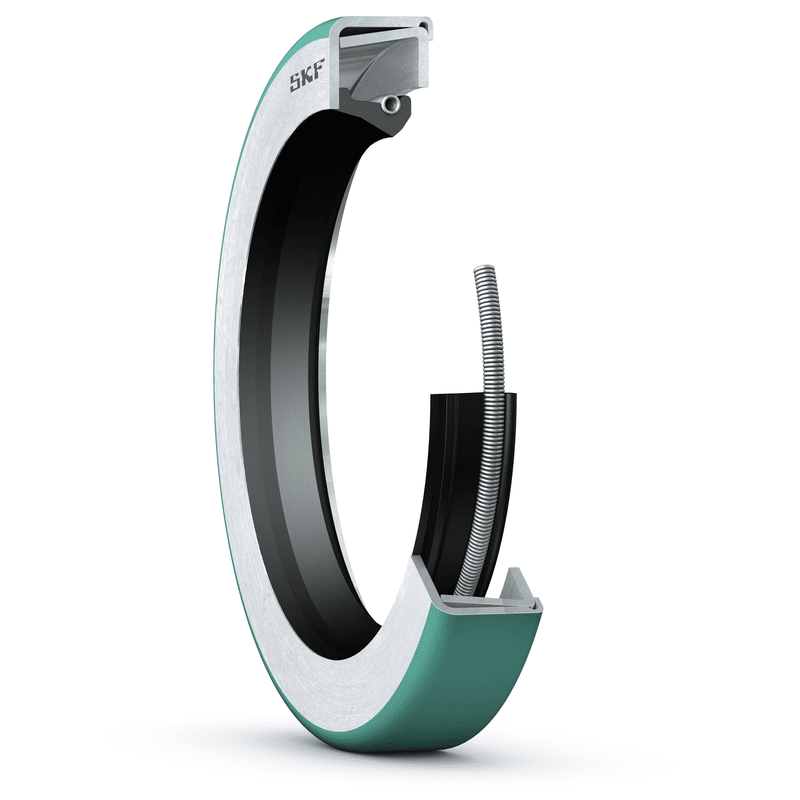

Radial shaft seals sit between rotating and stationary components, or two components in relative motion. They have two main parts. One is a cylindrical outer covering with an interference fit that seals statically against the housing bore. The second, a sealing lip, seals dynamically and statically against the shaft. Its sealing edge presses against the counterface surface of the shaft with a defined radial load.
Manufacturer : SKF
Description
Technical specification
| Type of outside diameter |
Metal-cased with sealant coating on the outside diameter
|
|---|---|
| Lip material |
Nitrile rubber (NBR)
|
| Seal design |
CRWH1
|
DIMENSIONS
| d1 |
110 mm
|
|
|---|---|---|
| D |
160 mm
|
|
| b |
12 mm
|
APPLICATION AND OPERATING CONDITIONS
| Operating temperature |
min. -40 °C
|
|
|---|---|---|
| Operating temperature |
max. 100 °C
|
|
| Shaft speed |
max. 1 920 r/min
|
|
| Shaft surface speed |
max. 11 m/s
|
