MultiPoint Automatic Lubricator TLMP1008/230V

PRODUCT DETAILS
Durable, metal housing for long service life Grease nipple LED display for simple programming Alarm indicates when reservoir is empty or when outlet is blocked Filter to avoid grease contamination from airborne particles Stirring paddle to prevent grease separation Pump element features maximum operating pressure of 120 bar (1 740 psi) Divider block provides flexibility of using one to eight outlets Cycle control sensor ensures lubricant is delivered to outlets

Related documents

CONTENTS

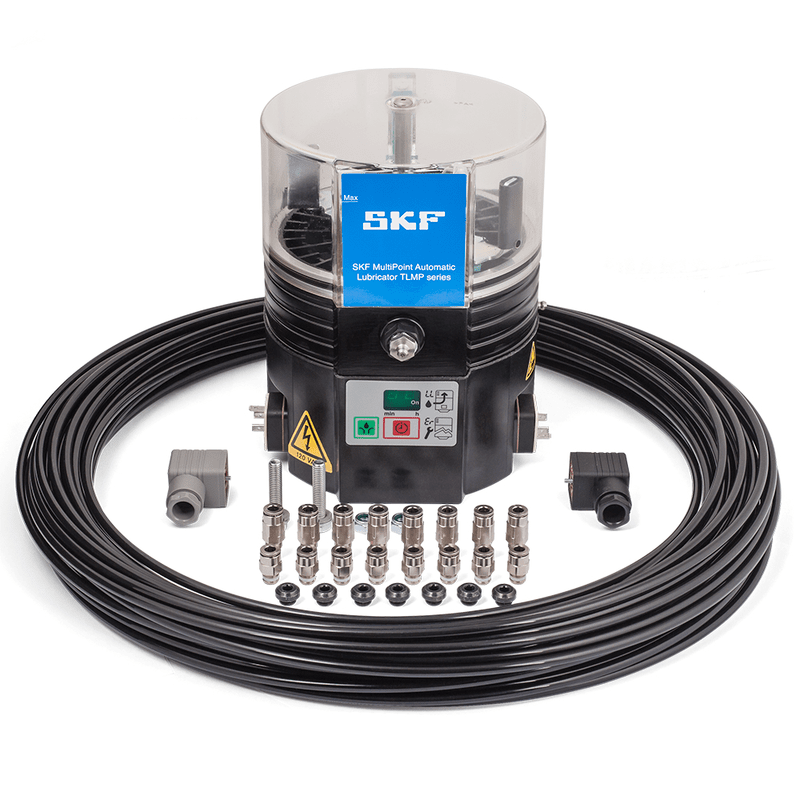

The TLMP series are supplied complete with the following items
TLMP 1008	TLMP 1018
1 ×	1 ×	Pump
1 ×	1 ×	Fitting material for the pump unit
2 ×	2 ×	Electrical connectors
20 m (65 ft)	50 m (164 ft)	plastic pipe Nylon, 6 x 1,5 mm
8 ×	18 ×	Straight tube connectors for application G 1/8
8 ×	18 ×	Tube connectors plugs
7 ×	17 ×	Outlet closure plugs

TECHNICAL DATA
Designation		TLMP 1008 / TLMP 1018
Number of lubrication outlets	TLMP 1008	1–8
Number of lubrication outlets	TLMP 1018	1–18
Suitable grease consistency		NLGI 2, 3
Maximum pressure		205 bar (2 970 psi)
Maximum distance length to lubrication point		5 m (16 ft)
Dispense rate		0,1 - 40 cm3/day (0.003 -1.35 US fl. oz/day) per outlet
Output pump element		Approx. 0,2 cm3 (per cycle), approx. 1,7 cm3 (per minute)
Reservoir size		1 litre
Useable reservoir volume		Approx. 0,5–0,9 litres (17–30 US fl.oz)
Filling		Via hydraulic lubrication fitting R1/4
Installation position		Vertical (max deviation ±5°)
Power Supply Connector		EN 175301-803 DIN 43650/A
Alarms		blocked feed lines, empty reservoir internal and external
External steering		By disconnecting power supply
Ambient temperature		–25 to +70 °C (–13 to +160 °F)
IP rating		IP 67
Lubrication tubes	TLMP 1008	20 m (65 ft), 6 x 1,5 mm, Nylon
Lubrication tubes	TLMP 1018	50 m (164 ft), 6 x 1,5 mm, Nylon
Weight		Approx. 6 kg (13 lb)
Ordering details 8 outlets	TLMP 1008/24DC	24 V DC (–20/+30%)
	TLMP 1008/120V	120 V AC 60 Hz (±10%)
	TLMP 1008/230V	230 V AC 50 Hz (±10%)
Ordering details 18 outlets	TLMP 1018/24DC	24 V DC (–20/+30%)
	TLMP 1018/120V	120 V AC 60 Hz (±10%)
	TLMP 1018/230V	230 V AC 50 Hz (±10%)

ACCESSORIES
Designation	Desciption
LAGF 1-F	Flexible hose with filler nipple
LAGF 1-H	Filler nipple

SPARE PARTS
Designation	Desciption
TLMP 1-D8	TLMP SSV metering device 8 K rear-mounted
TLMP 1-D18	TLMP SSV metering device 18 K rear-mounted
TLMP 1-F	TLMP Foam filter
TLMP 1-P	TLMP Pump element D6
TLMP 1-A	TLMP Adapter M22 x 1.5
TLMP 1-R	TLMP Transparent 1-l reservoir with sealing and labels
TLMP 1-H	TLMP Housing cover replacement kit
TLMP 1-M24	TLMP Pump motor 24 V DC
TLMP 1-C24	TLMP Control printed circuit board replacement kit 24 V DC
TLMP 1-C120	TLMP Control printed circuit board replacement kit 120 V AC
TLMP 1-C230	TLMP Control printed circuit board replacement kit 230 V AC
