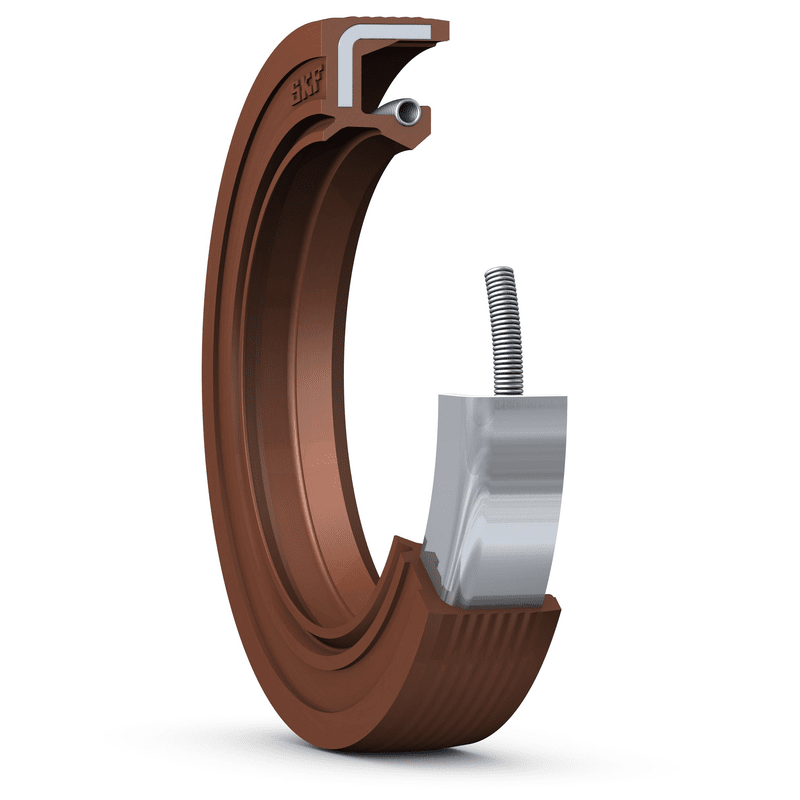

Oil Seal 19x32x7 HMSA10 V
SKU:OIL000624
Oil Seal 19x32x7 HMSA10 V
Radial shaft seals for general industrial applications
Radial shaft seals sit between rotating and stationary components, or two components in relative motion. They have two main parts. One is a cylindrical outer covering with an interference fit that seals statically against the housing bore. The second, a sealing lip, seals dynamically and statically against the shaft. Its sealing edge presses against the counterface surface of the shaft with a defined radial load.
Manufacturer : SKF
Description
Technical specification
| Type of outside diameter |
Rubber metal reinforced
|
|---|---|
| Lip material |
Fluoro rubber (FKM)
|
| Seal design |
HMSA10
|
| Compliance with standard |
ISO 6194, DIN 3760
|
DIMENSIONS
| d1 |
19 mm
|
|
|---|---|---|
| D |
32 mm
|
|
| b |
7 mm
|
APPLICATION AND OPERATING CONDITIONS
| Operating temperature |
min. -20 °C
|
|
|---|---|---|
| Operating temperature |
max. 200 °C
|
|
| Permissible operating temperature, short periods |
max. 200 °C
|
|
| Shaft speed |
max. 14 400 r/min
|
|
| Shaft surface speed |
max. 14.3 m/s
|
