Oil Seal 85x130x12 HMSA10V
SKU:OS8000002

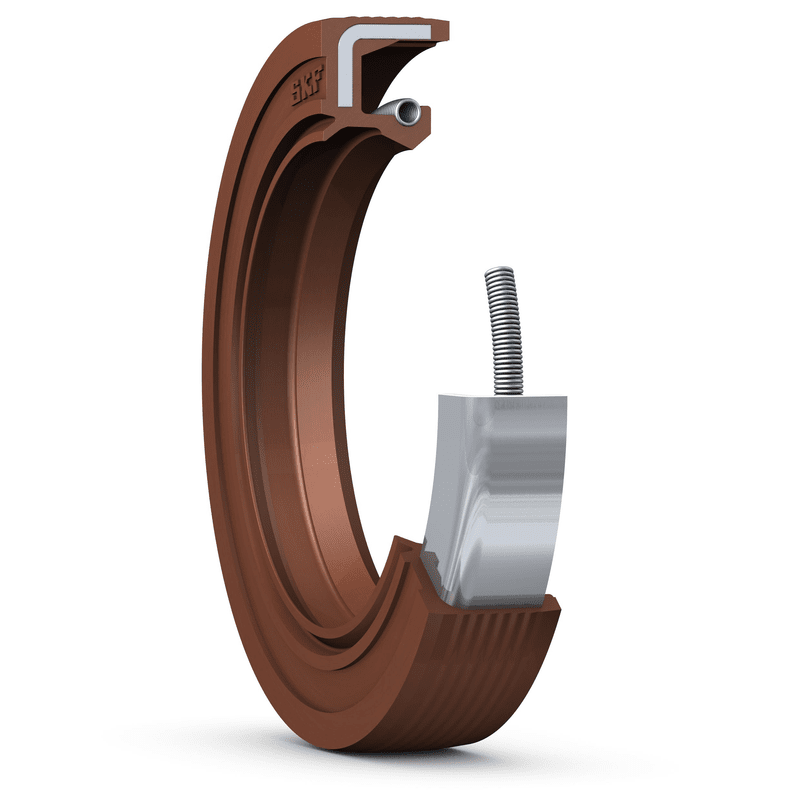

Oil Seal 85x130x12 HMSA10V
Radial shaft seals for general industrial applications
Radial shaft seals sit between rotating and stationary components, or two components in relative motion. They have two main parts. One is a cylindrical outer covering with an interference fit that seals statically against the housing bore. The second, a sealing lip, seals dynamically and statically against the shaft. Its sealing edge presses against the counterface surface of the shaft with a defined radial load.
Manufacturer : SKF
Description
Technical specification
| Type of outside diameter |
Rubber metal reinforced
|
|---|---|
| Lip material |
Fluoro rubber (FKM)
|
| Seal design |
HMSA10
|
DIMENSIONS
| d1 |
85 mm
|
|
|---|---|---|
| D |
130 mm
|
|
| b |
12 mm
|
APPLICATION AND OPERATING CONDITIONS
| Operating temperature |
min. -20 °C
|
|
|---|---|---|
| Operating temperature |
max. 200 °C
|
|
| Permissible operating temperature, short periods |
max. 200 °C
|
|
| Shaft speed |
max. 4 980 r/min
|
|
| Shaft surface speed |
max. 31.1 m/s
|
