Oil Seal 90x110x12 CRW1V
SKU:OIL000418
Oil Seal 90x110x12 CRW1V

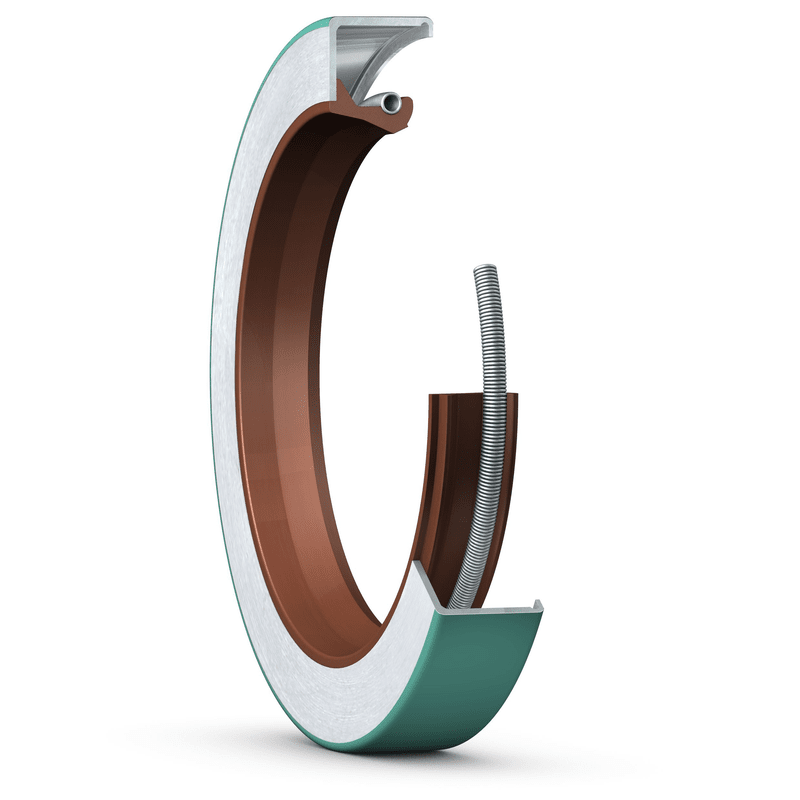

Radial shaft seals for general industrial applications
Radial shaft seals sit between rotating and stationary components, or two components in relative motion. They have two main parts. One is a cylindrical outer covering with an interference fit that seals statically against the housing bore. The second, a sealing lip, seals dynamically and statically against the shaft. Its sealing edge presses against the counterface surface of the shaft with a defined radial load.
Manufacturer : SKF
Description
Technical specification
| Type of outside diameter |
Metal-cased with sealant coating on the outside diameter
|
|---|---|
| Lip material |
Fluoro rubber (FKM)
|
| Seal design |
CRW1
|
| Compliance with standard |
DIN 3760
|
DIMENSIONS
| d1 |
90 mm
|
|
|---|---|---|
| D |
110 mm
|
|
| b |
12 mm
|
APPLICATION AND OPERATING CONDITIONS
| Operating temperature |
min. -40 °C
|
|
|---|---|---|
| Operating temperature |
max. 200 °C
|
|
| Shaft speed |
max. 6 720 r/min
|
|
| Shaft surface speed |
max. 32 m/s
|
