SSV6 620-40064-3

SKU:MET000009

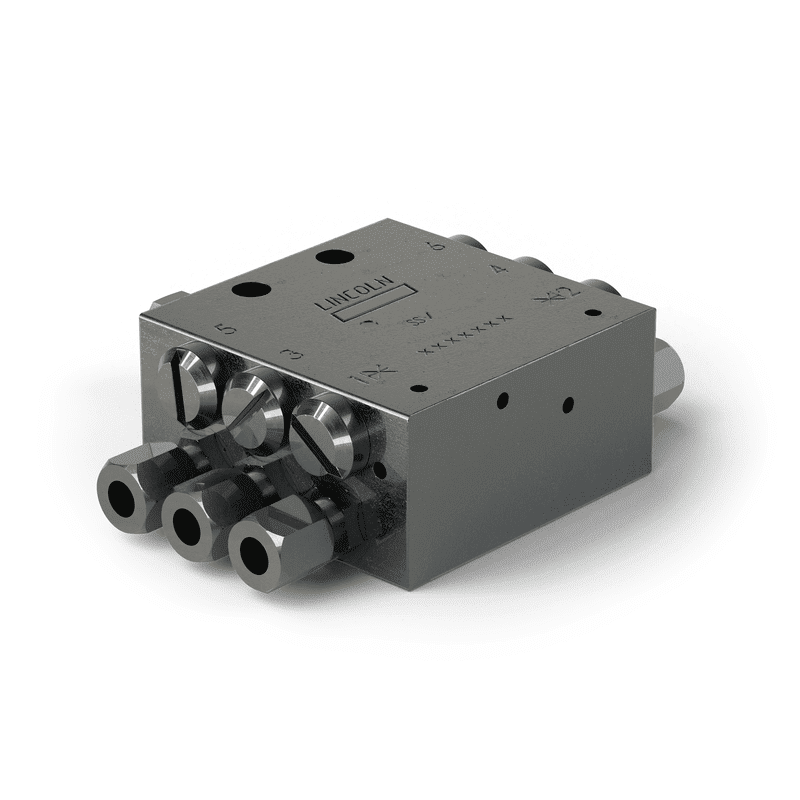

SSV6 620-40064-3 SSV type metering device is a compact single block progressive metering device. For direct mount of fittings with no need of any sealing in between. Available with pin indicator for visual system monitoring or with piston detector for electrical system monitoring. Metering device has to be ordered in single parts, see chart
Call for price
Manufacturer : SKF

Description

For use in progressive lubrication systems

Features and benefits

  • Sizes up to 22 outlets
  • High operating pressure
  • Available in different materials
  • Exact lubricant metering
  • Unique internal crossporting technology
  • Optionally equipped with visual monitoring pin or with electrically monitored piston detector

Applications

  • Construction and mining
  • Farm machinery
  • Industrial equipment
  • Renewable energies


TECHNICAL DATA
Function principle metering devices
Outlets 6-22
Lubricant Grease up to NLGI 2
oil at least 40 mm²/s
Metering quantity per cycle and outlet 0,2 cm³ 0.01 in³
Operating temperature –40 to +200 °C –40 to +390 °F
Operating pressure max. 350 bar 5075 psi
Materials black chromated steel
stainless steel
Connection inlet G 1/8 or 1/8 NPTF
Outlet connection M 10 × 1
Dimensions
min 60 x 60 x 30 mm 2.36 x 2.36 x 1.18 in
max 180 x 60 x 30 mm 7.08 x2.36 x 1.18 in
Mounting position any



Order information

SSV BSPP BLACK CHROMATED
Outlets Standard Visual pin with bypass bore cable (3 m, 9.8 ft)
no plug		 Indicator pin, proximity switch,
cable (2 m, 6.6 ft), no plug		 Piston detector,
with connection M 12, w3 wire
    K E N KN NP

6 619-26473-1 619-26474-3 619-77345-1 619-28257-1 619-27613-1 619-29050-1
8 619-25730-2 619-25754-4 619-77346-1 619-28258-1 619-27614-1 619-29051-1
10 619-26841-1 619-26842-2 619-77347-1 619-28259-1 619-27615-1 619-29052-1
12 619-25731-2 619-25755-4 619-77348-1 619-28260-1 619-27616-1 619-29674-1
14 619-28862-1 619-28871-1 619-77349-1 619-28890-1 619-29028-1 619-29387-1
16 619-28863-1 619-28872-1 619-77350-1 619-28907-1 619-28905-1 619-29951-1
18 619-28864-1 619-28873-1 619-77351-1 619-28957-1 619-28959-1 619-29139-1
20 619-28865-1 619-28874-1 619-77352-1 619-28935-1 619-28934-1 619-77301-1
22 619-28866-1 619-28875-1 619-77353-1 619-29015-1 619-77461-1 619-29973-1



SSV BSPP, STAINLESS STEEL 1.4305/303
Outlets Standard Visual pin with bypass bore Piston detector,
with connection M 12, w3 wire
  K E NP

6 619-27471-1 619-26472-1 619-77680-1 619-29929-1
8 619-27473-1 619-27474-1 619-77681-1 619-29322-1
10 619-27475-1 619-27476-1 619-77682-1 619-29970-1
12 619-27477-1 619-27478-1 619-77683-1 619-29971-1
14 619-29063-1 619-29067-1 619-77684-1 619-29993-1
16 619-29064-1 619-29068-1 619-77685-1 619-29994-1
18 619-29065-1 619-29069-1 619-77686-1 619-77178-1
20 619-29066-1 619-29074-1 619-77687-1 -
22 619-29775-1 619-77910-1 619-77688-1 619-77179-1



SSV BSPP, STAINLESS STEEL 1.4571/316 TI
Outlets Standard

2 619-27824-1
8 619-27825-1
10 619-27889-1
12 619-27900-1



SSV NPT, BLACK CHROMATED
Outlets Standard Visual pin
  K

6 619-27121-1 619-27122-1
8 619-26396-2 619-26646-2
10 619-26844-1 619-26845-2
12 619-26398-2 619-26648-2
14 619-29400-1 619-28899-1
16 619-29401-1 619-28900-1
18 619-77828-1 619-28901-1
20 619-77829-1 619-28902-1
22 - 619-77254-1



SSV NPT, STAINLESS STEEL 1.4305/303
Outlets Standard Visual pin
  K

6 619-27792-1 619-27793-1
8 619-27796-1 619-27797-1
10 619-27800-1 619-27801-1
12 619-27804-1 619-27805-1
14 - 619-77101-1



Accessories

OUTLET FITTINGS, PUSH-IN TYPE; VALVE BODY WITH CLAMPING RING
Part number Designation Material Tube ∅ Connection
226-14091-6 RV 6511-4-M 10x1-S02 brass, nickel-plated 4 plastic tube
226-14091-4 RVM 6511-6M 10x1-S01 brass, nickel-plated 6 plastic tube hose stud with groove
226-14091-2 RV 6511-6-M 10x1-S01 brass, nickel-plated 6 plastic tube
226-14091-8 WRVM 6521-6-M 10x1 valve body 90°  brass, nickel-plated 6 plastic tube hose stud with groove
226-14091-9 WRV 6511-6-M 10x1 valve body 90°  brass, nickel-plated 6 plastic tube



OUTLET FITTINGS, SCREW TYPE
Part number Description Material Tube ∅
504-30345-2 check valve assembly steel, black chromated 4
504-30344-4 check valve assembly steel, black chromated 6
504-31864-1 check valve assembly steel, black chromated 8
504-31863-1 check valve assembly steel, black chromated 8

504-31709-1 check valve assembly stainless steel, 1 4571 4
504-31705-1 check valve assembly stainless steel, 1 45716



OUTLET CLOSURE PLUG
Part number Description
303-17499-3 outlet closure plug with sealing edge, steel
303-19346-2 outlet closure plug with sealing edge, stainless steel

219-13798-3 O-ring for stainless steel closure plug; if after tightening with 18 Nm not sealed
404-22614-1 special screwdriver for closure plugs on SSV metering devices



OUTLET COMBINING ELEMENT
Part number Description Material Tube ∅
519-31826-1 external outlet combining element for outlets 1 and 2 steel, black chromated 6



PISTON DETECTORS
Part number Description
Universal / bipolar piston detector
234-13163-9 universal piston detector
234-11454-1 bipolar piston detector
419-74031-1 adapter SSV/SSVD
237-13442-4 plug
237-13442-6 90° plug with cable 5 m (16.5 ft)
236-10022-7 straight plug with cable 10 m (33 ft)
Piston detector with cable
664-85282-7 piston detector with cable; 3 m (10 ft)
664-85282-6 piston detector stainless steel with cable; 3 m (10 ft)
664-85282-8 piston detector with cable; 5 m (16.5 ft)
Piston detector with cable and bayonet plug
664-85242-2 piston detector with cable; 3 m (10 ft); bayonet plug
664-85242-5  piston detector with cable; 7 m (23 ft); bayonet plug



PRESSURE INDICATING UNITS
Part number Description Pressure
  bar psi
532-60073-1 pressure indicator assembly 50 725
532-60075-1 pressure indicator assembly 200 2900
532-60085-1 pressure indicator assembly 270 3915



ACCESSORIES FOR PROXIMITY SWITCHES KS AND KN
Part number Description
519-36713-7 limit switch with accessories for proximity switch KS
236-13281-2 limit switch V3S+VL1  for proximity switch KS

234-10812-8 proximity switch PNP, 10-30 VDC, for proximity switch KN
234-13134-5 proximity switch NPN, 10-30 VDC, for proximity switch KN
519-30911-1 adapter with stop ring, for proximity switch KN



PRESSURE CHECKING SET
Part number Description
604-36879-1 set for checking pressure and function



BRACKET
Part number Description
307-19543-1 bracket for SSV; steel, galvanized
519-34271-1 bracket for SSV14 ... SSV22; steel, galvanized



METERING ADJUSTMENT SCREWS
Part number  1) Code Output
One piece Bag of 12 pc.   cm3 in3
303-16118-1 549-34254-1 A 0,08 0.0049
303-16119-1 549-34254-2 B 0,14 0.0085
303-16120-1 549-34254-3 C 0,20 0.012
303-16121-1 549-34254-4 D 0,30 0.018
303-16122-1 549-34254-5 E 0,40 0.024
303-16123-1 549-34254-6 F 0,60 0.037
303-16124-1 549-34254-7 G 0,80 0.049
303-16125-1 549-34254-8 H 1,00 0.061
303-16126-1 549-34254-9 I 1,40 0.085
303-16127-1 549-34255-1 2) J 1,80 0.110
